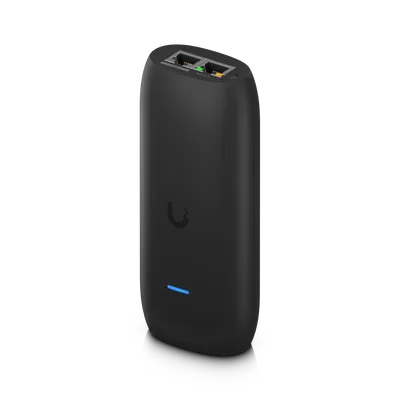

Plan your UniFi AI Port installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UP-AI-Port.

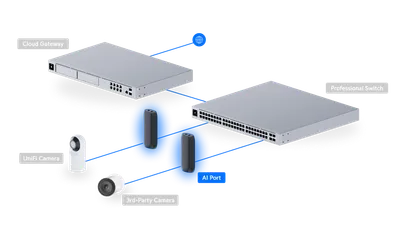

The UP-AI-Port performs a supporting role in the camera system. We check its exact function, compatible host equipment, software requirements and network or display connections before including it in the scope. Its supported application determines how it can be used.
Power Method: PoE PoE+ input required for PoE output (12.95W) PoE++ input required for PoE+ output (25.5W). Networking Interface: (1) GbE RJ45 port. Dimensions: Without mount: 150 x 64 x 38.4 mm (5.9 x 2.5 x 1.5") With mount: 152.7 x 69 x 47.8 mm (6 x 2.7 x 1.9"). Ambient Operating Temperature: -20 to 40° C (-4 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We review the available interface, power source and the location where the device will be used. Display, processing and notification devices each have different dependencies. The manufacturer specifications below are checked against the system already on site.
Configuration and handover cover the specific viewing, notification or processing task agreed for this product. User access and compatibility limits are explained alongside the wider Protect installation.
Manufacturer specifications for UP-AI-Port. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Without mount: 150 x 64 x 38.4 mm (5.9 x 2.5 x 1.5") With mount: 152.7 x 69 x 47.8 mm (6 x 2.7 x 1.9") |
|---|---|
| Resolution | Max. camera resolution: Width: 3840 pixels Height: 2160 pixels |

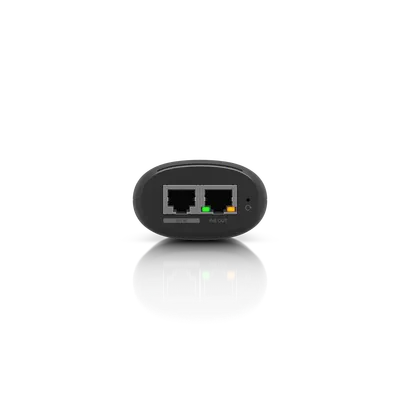

| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE PoE+ input required for PoE output (12.95W) PoE++ input required for PoE+ output (25.5W) |
|---|---|

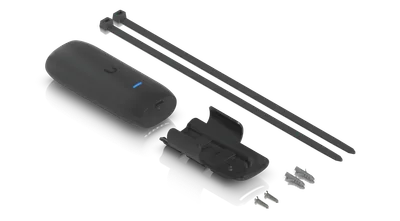

| Pole Mount Diameter | >45 mm (1.8") on pipe outer diameter |
| Weight | Without mount: 258.3 g (9.1 oz) With mount: 294 g (10.4 oz) |
| Enclosure Material | Polycarbonate |

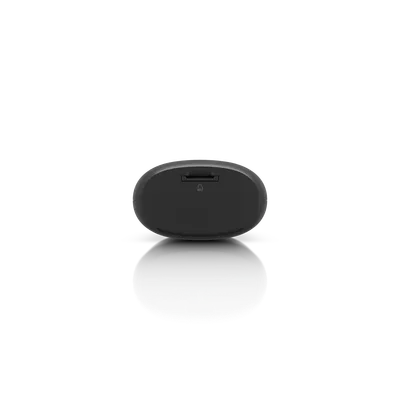

| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Web Application | UniFi Protect: Version 5.1 and later |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
