Plan your UniFi CloudKey+ SSD installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UCK-G2-SSD.

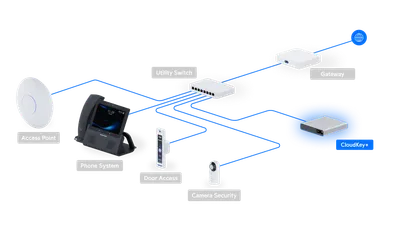

The UCK-G2-SSD performs a supporting role in the camera system. We check its exact function, compatible host equipment, software requirements and network or display connections before including it in the scope. Its supported application determines how it can be used.
Power Method: PoE USB-C power with Quick charge 2.0/3.0 power adapter, 9V DC, 2A (Optional). Max. Power Consumption: 9.6W. Networking Interface: (1) GbE RJ45. Dimensions: 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3"). Ambient Operating Temperature: 0 to 35° C (32 to 95° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We review the available interface, power source and the location where the device will be used. Display, processing and notification devices each have different dependencies. The manufacturer specifications below are checked against the system already on site.
Configuration and handover cover the specific viewing, notification or processing task agreed for this product. User access and compatibility limits are explained alongside the wider Protect installation.
Manufacturer specifications for UCK-G2-SSD. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Ports | GbE PoE In |
|---|---|
| Storage | Pre-Installed SSD |
| App Suite | UniFi Protect |
| Dimensions | 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
|---|---|
| Managed Cameras | (24) HD (14) 2K (8) 4KAssumes the UCK-G2-PLUS is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower. |
| Managed Access Hubs | 80Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |

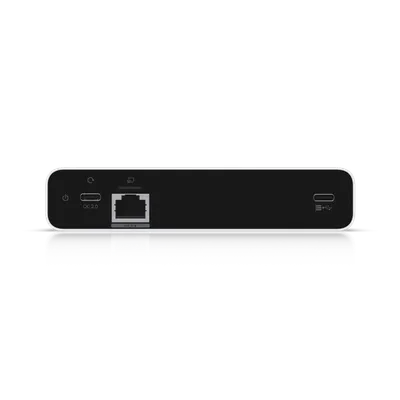

| Networking Interface | (1) GbE RJ45 |
| Form Factor | Compact Desktop |
| Hard Drive Capacity | 1 TB 2.5" SATA SSD (User-upgradeable)CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported. |
|---|---|
| Max. Power Consumption | 9.6W |
| Power Method | PoE USB-C power with Quick charge 2.0/3.0 power adapter, 9V DC, 2A (Optional) |
| Processor | Octa-core Arm® Cortex®-A53 based chip |
| Memory | 32 GB eMMC 3 GB RAM |
| Management | Ethernet Bluetooth |

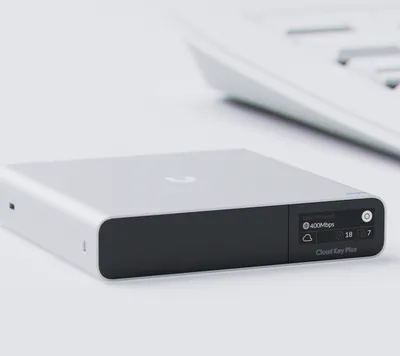

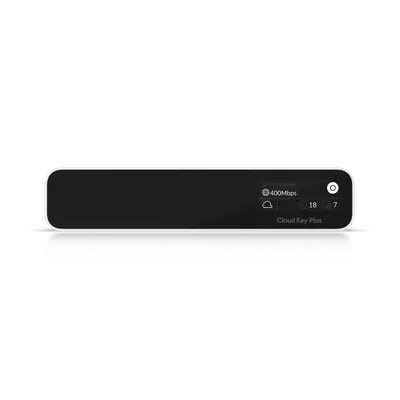

| Display | 1.42" gray-scale OLED |
| Weight | 560 g (1.2 lb) |
| Enclosure Material | Anodized Aluminum |
| Ambient Operating Temperature | 0 to 35° C (32 to 95° F) |
| Ambient Operating Humidity | 20 to 80% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05196-25-08356, SRRC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
