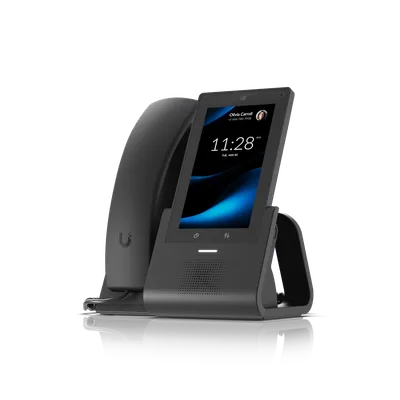

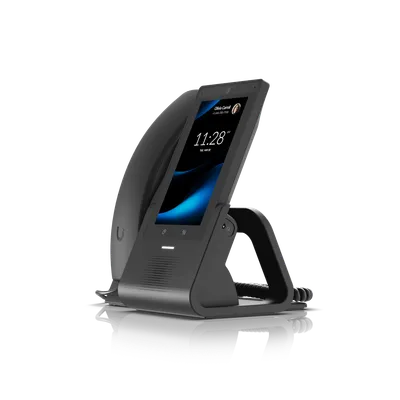

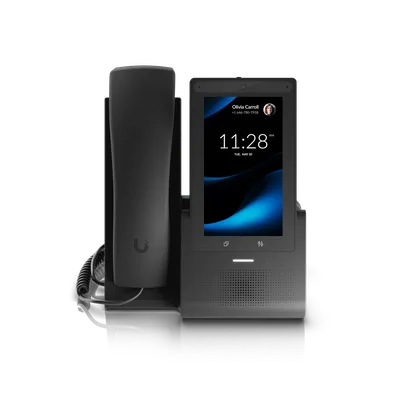

Plan your UniFi Phone G3 Touch Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UTP-G3-Touch-Pro.
Subsciption: Subscription Unlocked
We review what UTP-G3-Touch-Pro needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: PoE. Max. Power Consumption: 10W. Mounting: Desktop. Dimensions: 165.4 x 139.5 x 185.3 mm (6.5 x 5.5 x 7.3"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UTP-G3-Touch-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 165.4 x 139.5 x 185.3 mm (6.5 x 5.5 x 7.3") |
|---|---|
| Mounting | Desktop |
| Touch Screen Technology | Multi-Touch |
| Available Colors | Black |
| Weight | 1 kg (2.2 lb) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy (base) |

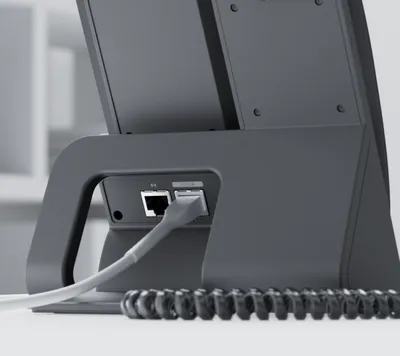

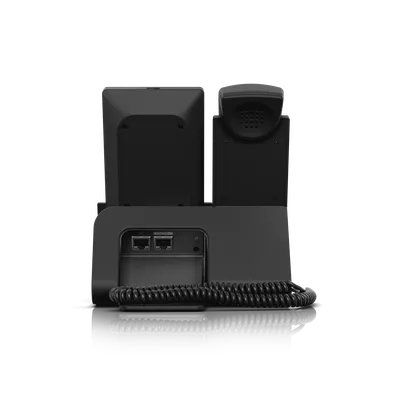

| Connectivity | (2) GbE RJ45 ports 802.11 a/b/g/n/ac WiFi Bluetooth® 4.2 (General use) Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only) |
|---|---|
| Power Method | PoE |
| Max. Power Consumption | 10W |
| Processor | Octa-Core ARM® Cortex® A53 |
| Memory | Storage: 32 GB RAM: 2 GB |
| Camera | 2592 x 1944, 5MP (Embedded Privacy shutter) |
| Screen Surface Treatments | Anti-Glare Coating |
| Size | 127 mm (5") diagonal |
| Resolution | 720 x 1280 HD |
| Hands-Free Microphone | Dual omnidirectional MEMS microphone |
| Hands-Free Speaker | Single 2W speaker |
| Handset Microphone | Omnidirectional electret condenser microphone |
| Handset Dynamic Receiver | Standard wideband-capable audio |
| Buttons | (1) Mute Button |
| Headset Support | 3.5 mm (0.14") audio jack |
| LED | R/G/B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 06740-25-08356 |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
