Plan your UniFi Phone G3 Touch Wall installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UTP-G3-Touch-Wall.
Subsciption: Subscription Unlocked
We review what UTP-G3-Touch-Wall needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.

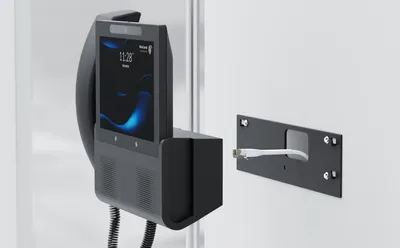

Power Method: USB type-C PoE. Max. Power Consumption: 11W. Mounting: Wall. Dimensions: 254.4 x 202.5 x 70.1 mm (10 x 8 x 2.8”). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UTP-G3-Touch-Wall. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 254.4 x 202.5 x 70.1 mm (10 x 8 x 2.8”) |
|---|---|
| Mounting | Wall |
| Touch Screen Technology | Multi-Touch |
| Available Colors | Black |
| Weight | 1.1 kg (2.5 lb) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy (base) |

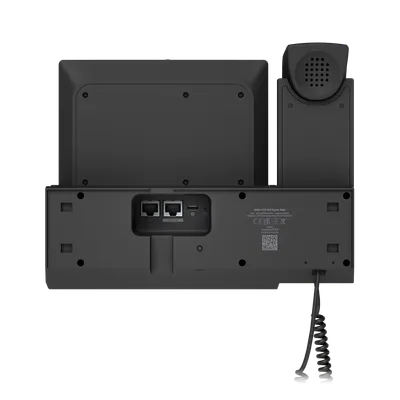

| Connectivity | (2) GbE RJ45 ports 802.11 a/b/g/n/ac WiFi Bluetooth® 4.2 (General use) Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only) NFC support |
|---|---|
| Power Method | USB type-C PoE |
| Max. Power Consumption | 11W |
| Processor | Octa-core ARM® Cortex®-A53 |
| Memory | Storage: 32 GB RAM: 2 GB |
| Camera | 2592 x 1944, 5MP (Embedded Privacy shutter) |
| Screen Surface Treatments | Anti-Glare Coating |
| Size | 178 mm (7") diagonal |
| Resolution | 1280 x 800 HD |
| Hands-Free Microphone | Dual omnidirectional MEMS microphone |
| Hands-Free Speaker | Dual 3W speaker |
| Handset Microphone | Omnidirectional electret condenser microphone |
| Handset Dynamic Receiver | Standard wideband-capable audio |
| Buttons | (1) Mute Button |
| LED | R/G/B/W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 10 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
