UPL-Port · Perth installation

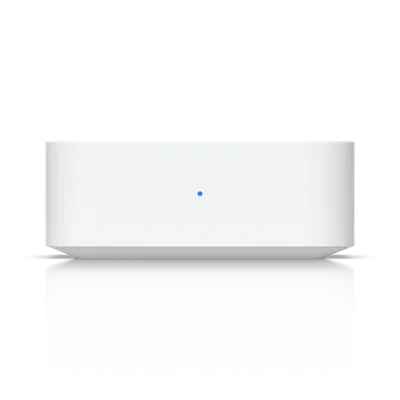

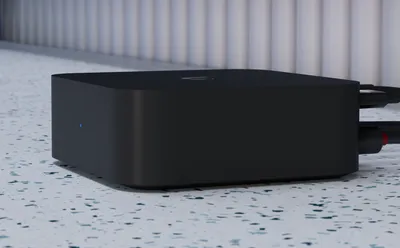

UniFi PoE Audio Port
Installation Perth.

Plan your UniFi PoE Audio Port installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UPL-Port.

  • Australian model and supported services
  • Network, mounting and power
  • Account ownership and maintenance
Request a site assessment Australian model, compatibility and procurement checked before the scope is confirmed.

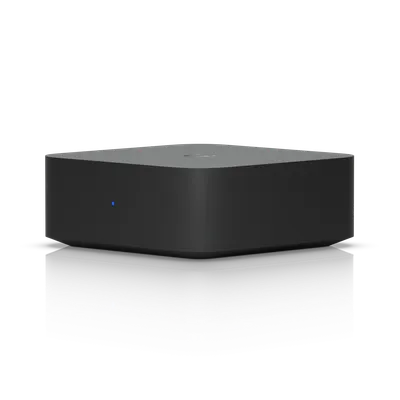

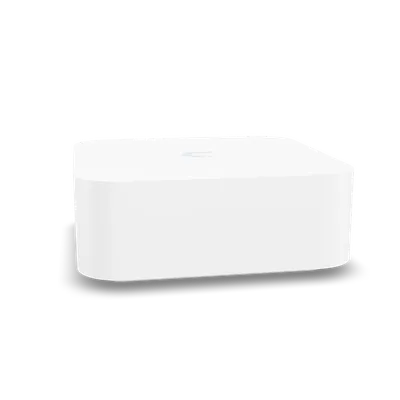

Color: Black · White

Installing PoE Audio Port. Start with the site.

Define the job for PoE Audio Port.

We review what UPL-Port needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.

Installation details for UPL-Port

Power Method: (1) AC/DC adapter, 12V DC (Included) (1) PoE. Max. Power Consumption: 10W. Networking Interface: (1) 10/100 MbE RJ45 port. Mounting: Compact Desktop. Dimensions: 109 x 109 x 40.5 mm (4.3 x 4.3 x 1.6"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

Check the supporting connections.

Cabling, supported interfaces and regional features are reviewed against the current manufacturer information. Any subscriptions, service dependencies or compatibility limits are identified in the scope before installation.

Document how the addition is used.

Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.

Know the
equipment.

Manufacturer specifications for UPL-Port. Check the selected model, regional version and current software requirements during assessment.

View manufacturer source
Mechanical
Dimensions109 x 109 x 40.5 mm (4.3 x 4.3 x 1.6")
Weight250 g (8.5 oz)
Enclosure MaterialPolycarbonate
MountingCompact Desktop

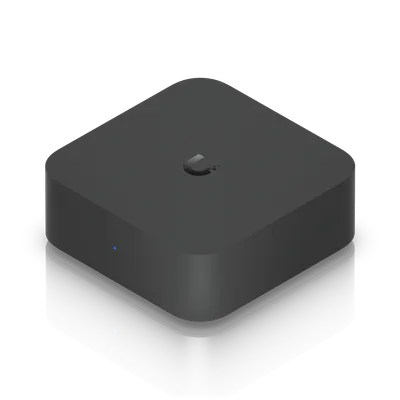

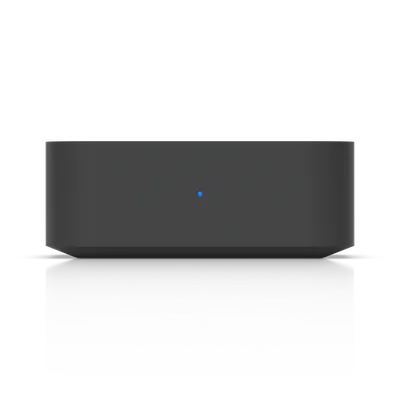

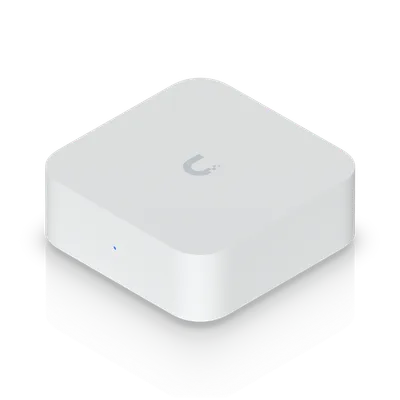

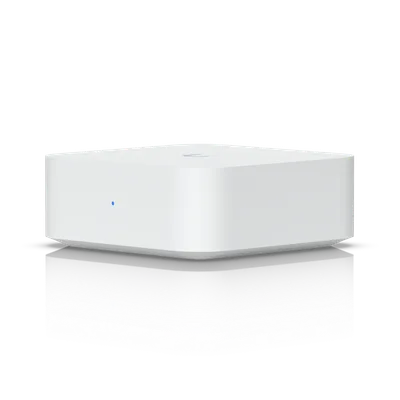

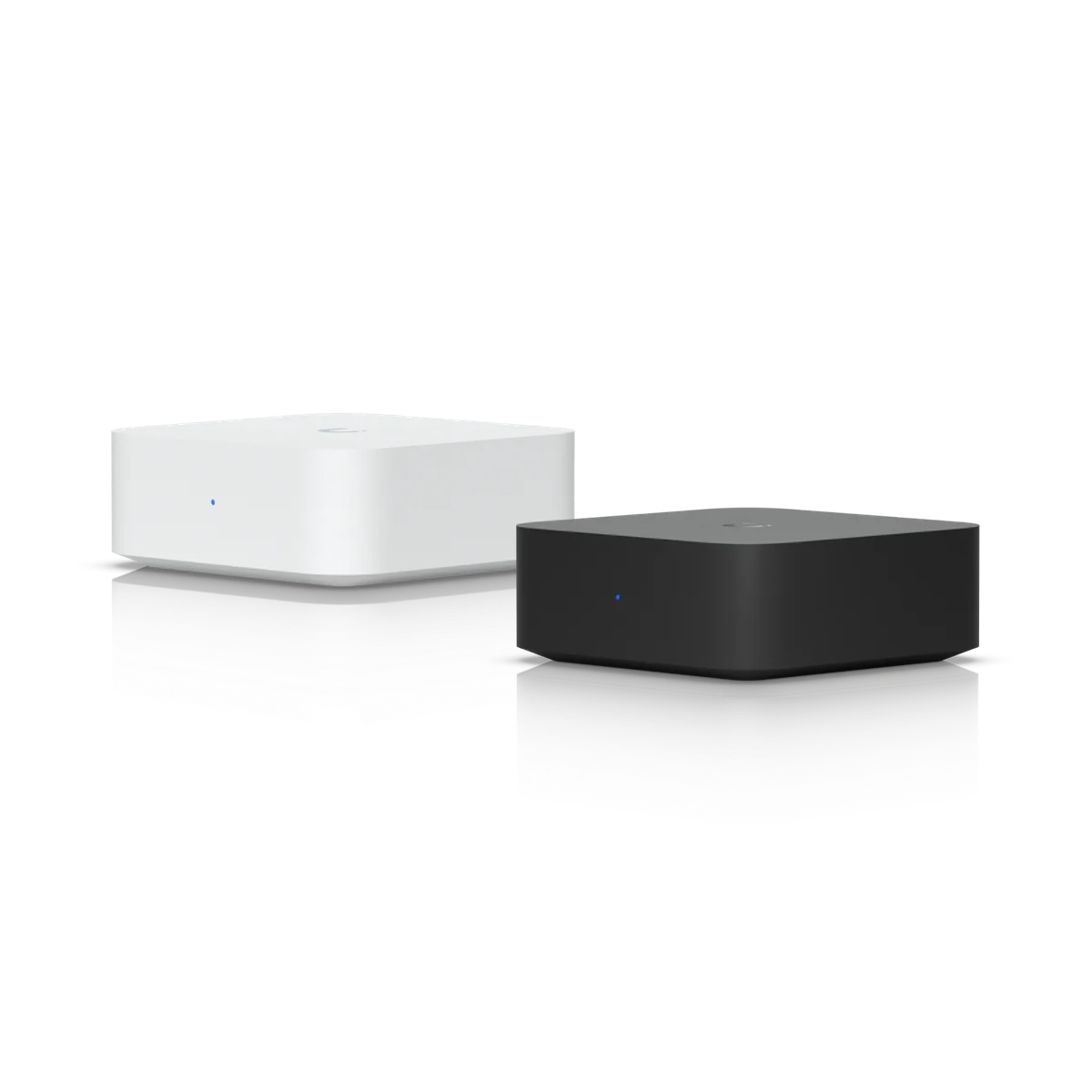

Available ColorsBlack White
Audio
OutputMono / Stereo sound
Surround FormatPCM
ZoneUp to 32 PowerAmps and PoE Audio Ports

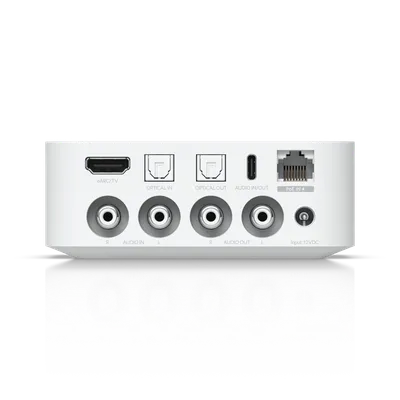

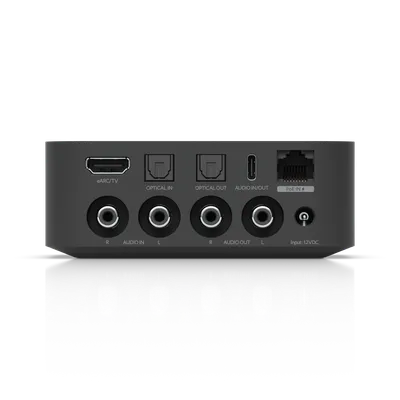

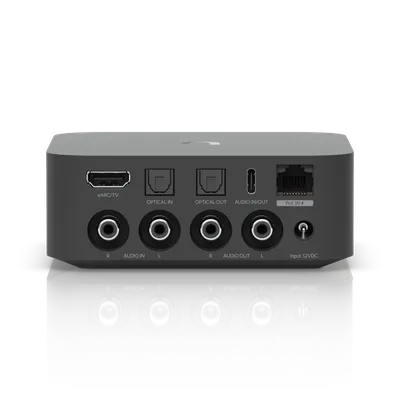

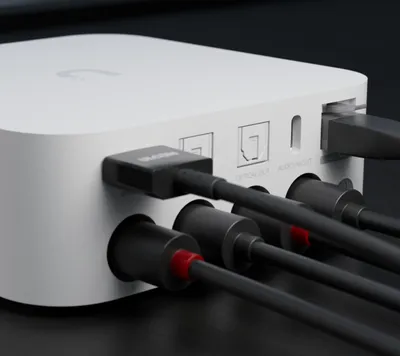

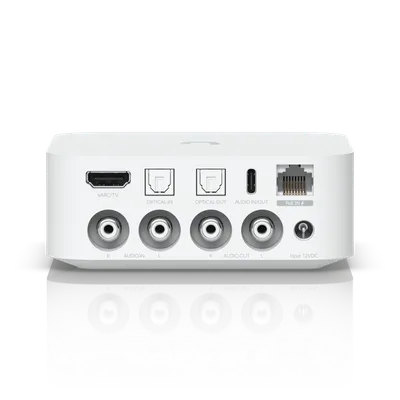

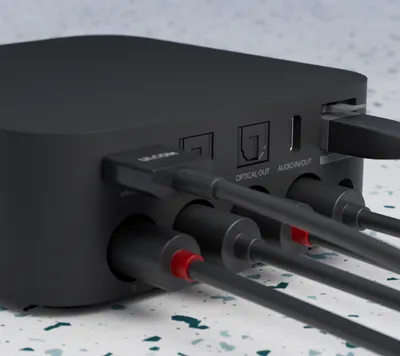

Audio Input(2) RCA analog inputs L/R (1) HDMI eARC input (1) Optical In (1) USB-C versatile port
Audio Output(2) RCA analog outputs L/R (1) Optical Out (1) USB-C versatile port
StreamingAirPlay, Google Cast, Spotify Connect, Soundtrack Your Brand
Hardware
Networking Interface(1) 10/100 MbE RJ45 port
WiFi Standards802.11 a/b/g/n/ac/ax
ConnectivityWiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz

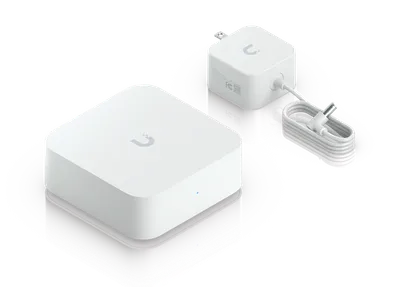

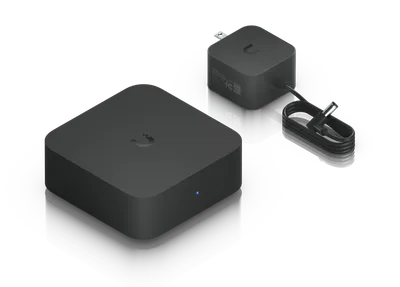

Power Method(1) AC/DC adapter, 12V DC (Included) (1) PoE
Max. Power Consumption10W
Button(1) Factory reset
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsFCC, IC, CE, Anatel: 07624-25-08356
Software

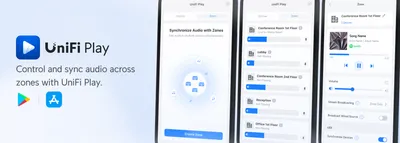

Application RequirementsUniFi Play iOS™ and Android™: Version 2.0.0 and later

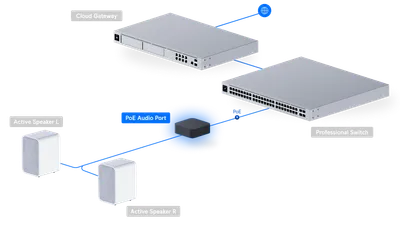

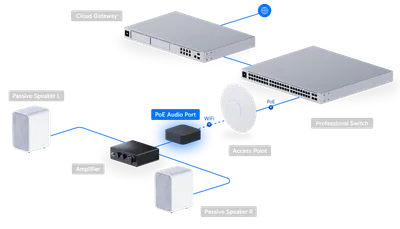

Plan the supporting equipment. Check the complete system.

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.

UC-Cast-Lite

Display Cast Lite

Installation, specifications and supporting equipment.

UniFi Display Cast Lite
UC-Cast-Pro

Display Cast Pro

Installation, specifications and supporting equipment.

UniFi Display Cast Pro
EAV-Bridge

Enterprise Audio/Video Bridge

Installation, specifications and supporting equipment.

UniFi Enterprise Audio/Video Bridge
UC-EV-Station-Lite

EV Station Lite

Installation, specifications and supporting equipment.

UniFi EV Station Lite

A few practical questions.

Can you assess PoE Audio Port for an existing system?
Yes. Include UPL-Port, your existing console or host equipment, and a brief description of the work in your enquiry. We check compatibility, capacity and site access before confirming the installation scope.
What should I send for a PoE Audio Port assessment?
Send your suburb, property type, the intended location and any existing equipment model numbers. Australian model and supported services and network, mounting and power are useful starting points. Photographs of the proposed location can help with the initial discussion.
Does this page confirm Australian stock or a fixed installation price?
No. This catalogue uses manufacturer product references. We confirm the suitable Australian model, procurement options and a site-specific scope before quoting.
