Plan your UniFi PowerAmp installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UPL-Amp.

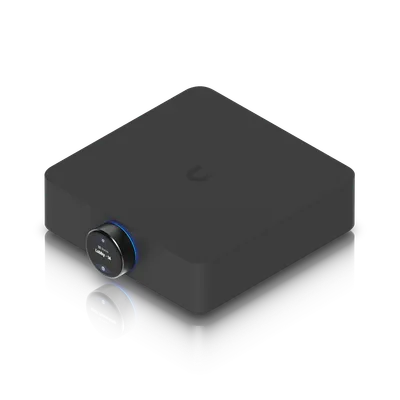

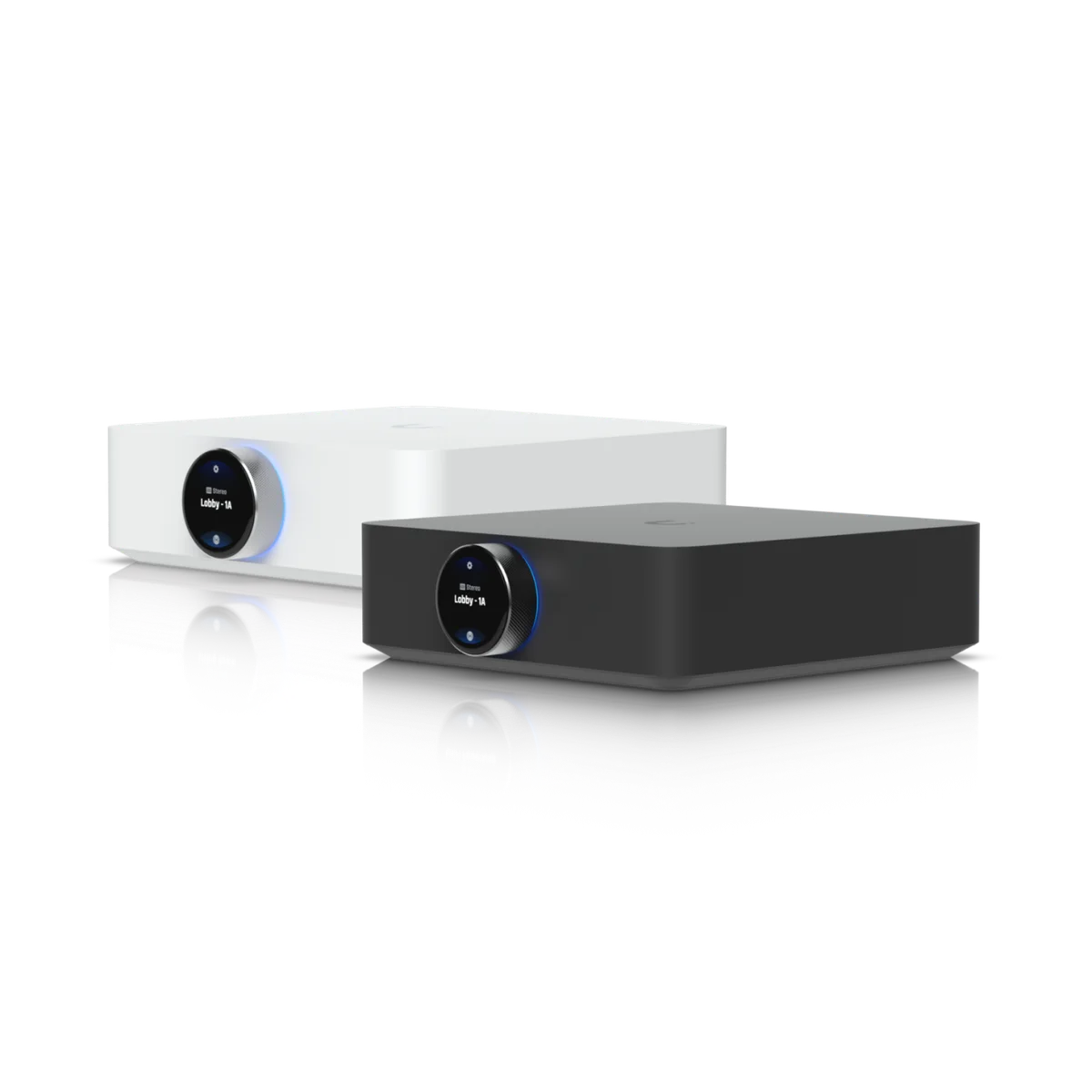

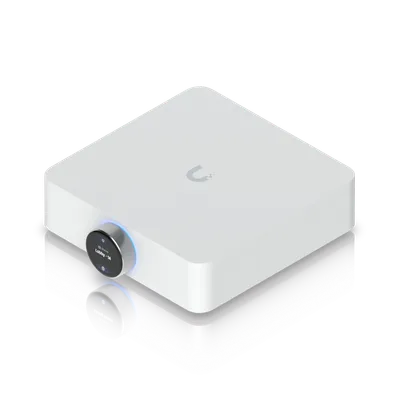

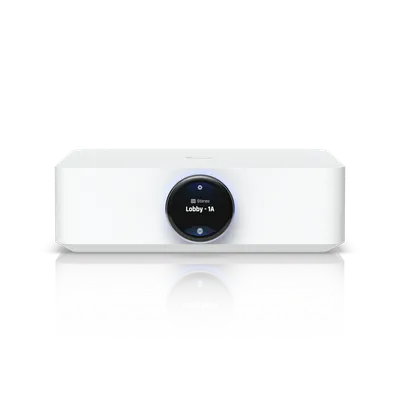

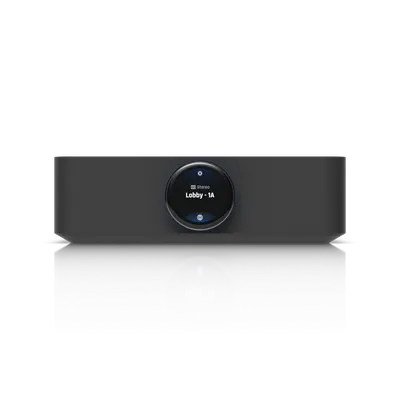

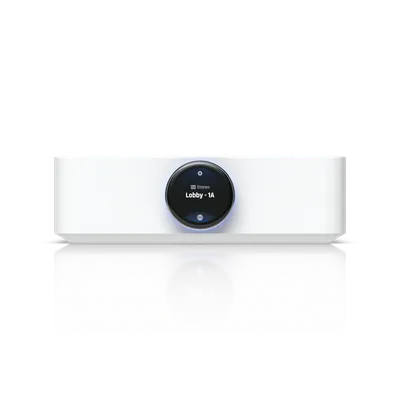

Color: Black · White
We review what UPL-Amp needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz. Max. Power Consumption: 17W. Networking Interface: (2) GbE RJ45 ports. Mounting: Compact Desktop. Dimensions: With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Power connections, the intended load and the required backup function determine suitability. Runtime varies with the connected equipment and battery condition. We confirm the Australian configuration and installation responsibilities before specifying the unit.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for UPL-Amp. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
|---|---|
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Chassis: Polycarbonate Knob: Aluminum |
| Mounting | Compact Desktop |
| Available Colors | Black White |
| Per Channel Power (Continuous power) | 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
|---|---|
| Amplifier Class | Class D |
| Output | Mono / Stereo sound |
| Surround Format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
| Zone | Up to 32 PowerAmps |

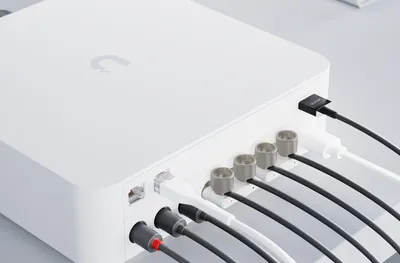

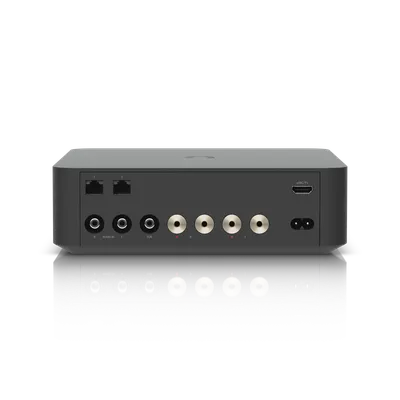

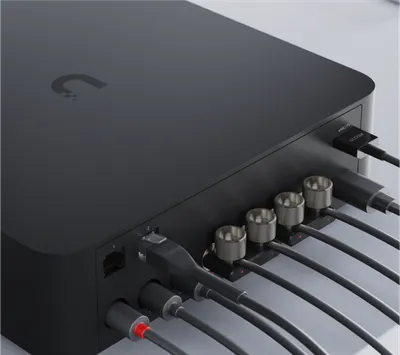

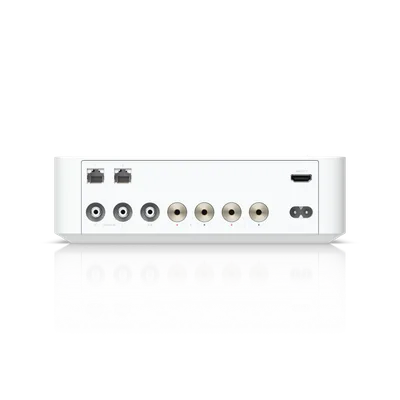

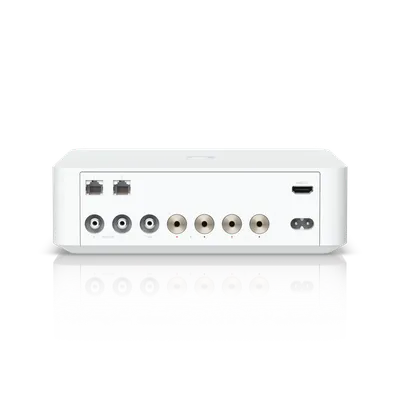

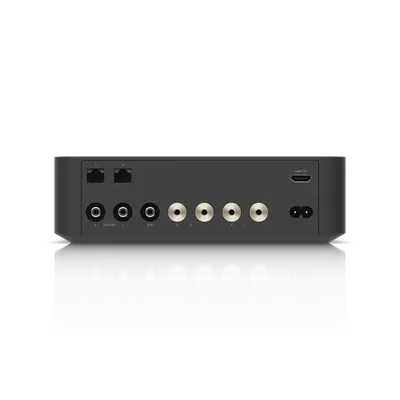

| Audio Input | (1) HDMI eARC input (2) RCA analog inputs L/R |
| Audio Output | (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay, Spotify Connect, Soundtrack Your Brand |
| Networking Interface | (2) GbE RJ45 ports |
|---|---|
| WiFi Standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz |
| Power Method | (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz |
| Max. Power Consumption | 17W |

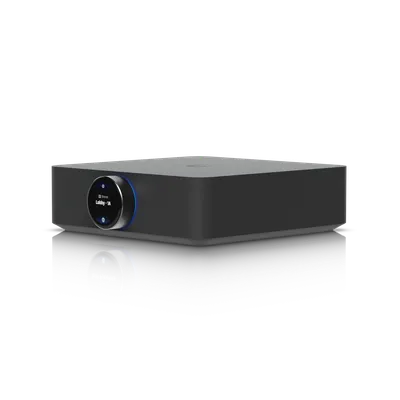

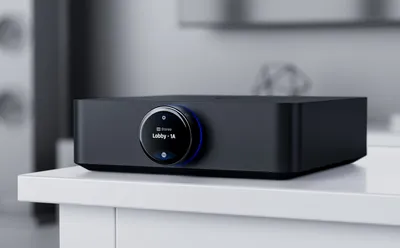

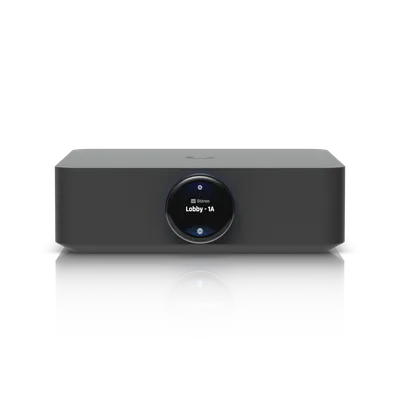

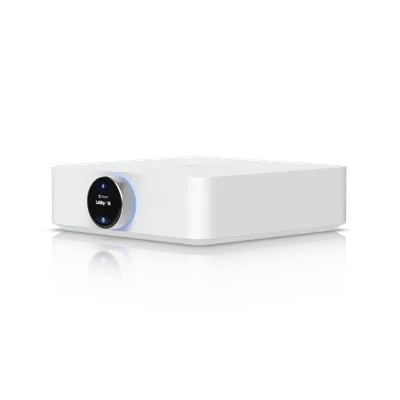

| LCM Display | 1.43" rotary knob with touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Application Requirements | UniFi Play iOS™ and Android™: Version 1.0.0 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
