Plan your UniFi SuperLink Gateway installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USL-Gateway.
The SuperLink Gateway (USL-Gateway) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: PoE USB Type-C, 5V, 1A (Optional). Max. Power Consumption: 3.4W. Networking Interface: (1) 10/100 MbE RJ45 port. Mounting: Wall and DIN rail mount. Dimensions: With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for USL-Gateway. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
|---|---|

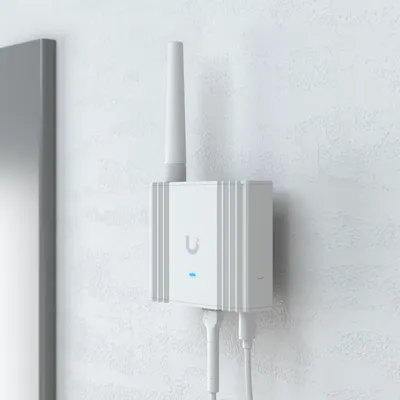

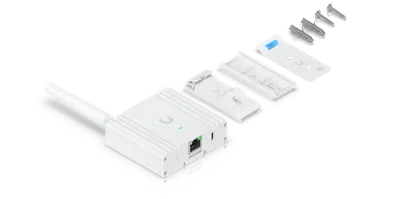

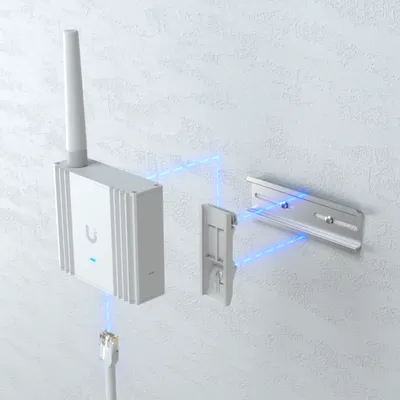

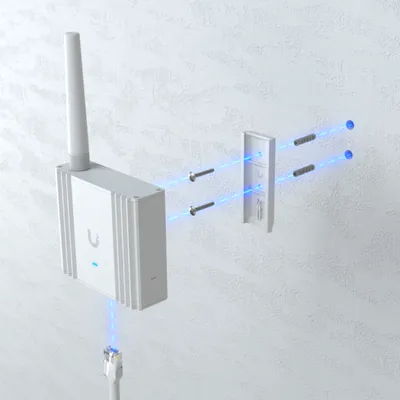

| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |

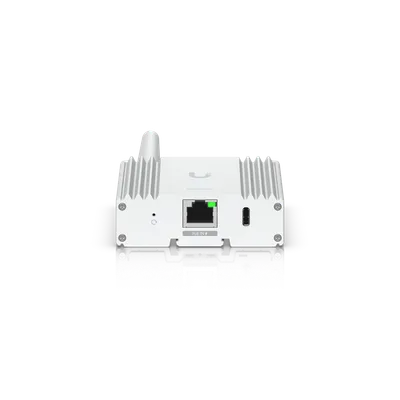

| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|
| Connectivity | Bluetooth® 5.2 SuperLink (Proprietary) |
| Bluetooth | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz |
| Bluetooth | 3 dBi |
| SuperLink | 2 dBi |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi)Line of Sight (LOS) |
| Bluetooth | 7 |
| SuperLink | 96 |
| Max. Power Consumption | 3.4W |
|---|---|
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |

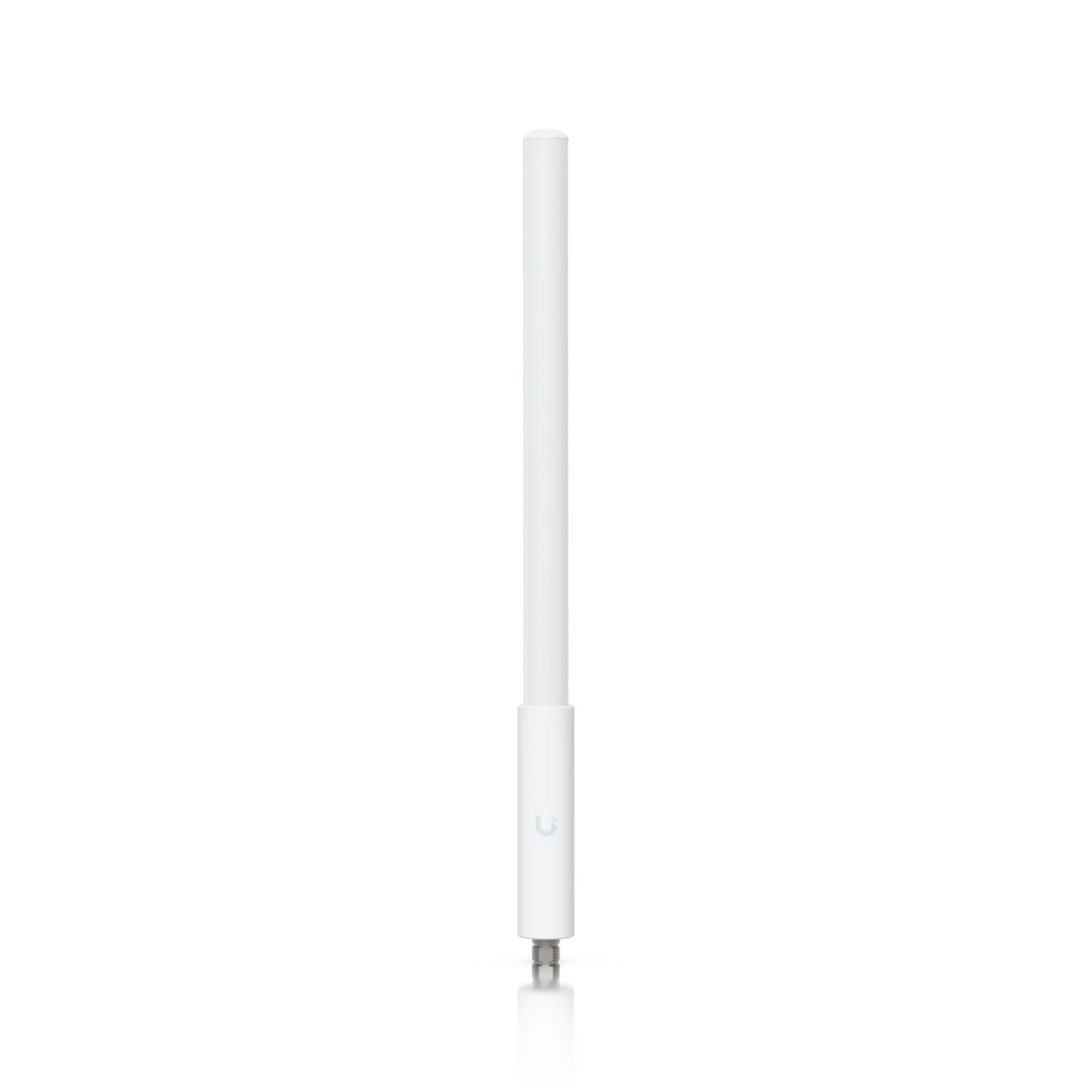

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
