Plan your UniFi SuperLink High-Gain Antenna fitting and compatibility in Perth with Servicewest. We assess the site and supporting equipment before specifying UACC-USL-ANT-HG.

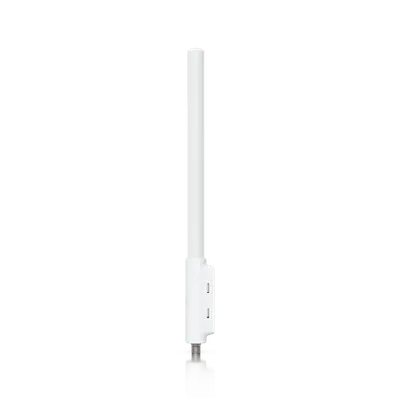

The SuperLink High-Gain Antenna (UACC-USL-ANT-HG) needs to be matched to the host device and the intended installation. Similar-looking mounts, adapters and accessories can have different attachment points or electrical requirements. Send us the model number of the equipment you already own so we can check the pairing before quoting.

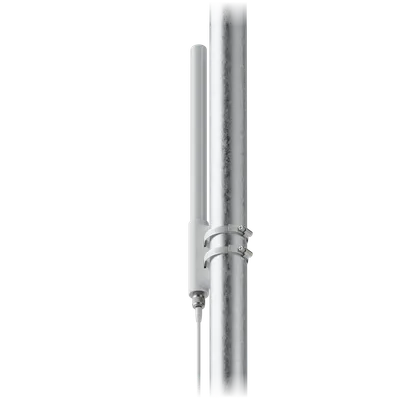

Mounting: Pole mount. Weatherproofing: IP67. Dimensions: Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7") With cable: 1458.4 x 31.8 x 44.1 mm (57.4 x 1.3 x 1.7") Cable: ⌀5.2 x 1000 mm (⌀0.2 x 39.4"). Ambient Operating Temperature: -40 to 60° C (-40 to 140° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check the manufacturer compatibility information, the location where the accessory will be used and any supporting parts required. The installation scope identifies what is included, what is already on site and any items that need replacement.
Accessory work is scoped alongside the equipment it supports. Tell us whether this is part of a new installation, a repair or an expansion. We can then plan access to the equipment and any interruption needed to fit and test the part.
Manufacturer specifications for UACC-USL-ANT-HG. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7") With cable: 1458.4 x 31.8 x 44.1 mm (57.4 x 1.3 x 1.7") Cable: ⌀5.2 x 1000 mm (⌀0.2 x 39.4") |
|---|---|
| Weatherproofing | IP67 |

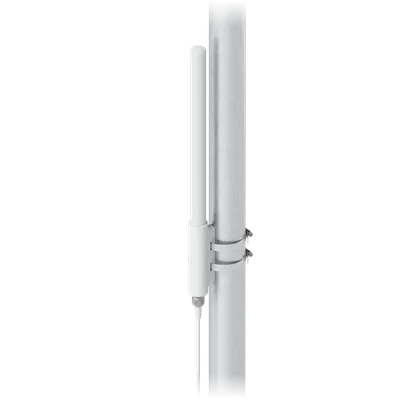

| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| UniFi Application Suite | Protect |
| US | 860–930 MHz |
|---|---|
| EU | 860–930 MHz |
| Bluetooth | 2400–2480 MHz |
| Bluetooth | 4 dBi |
| SuperLink | 7 dBi |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 5 km (3.1 mi)Line of Sight (LOS) |
| Weight | Device: 275 g (9.7 oz) Cable: 65 g (2.3 oz) |
|---|---|
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |

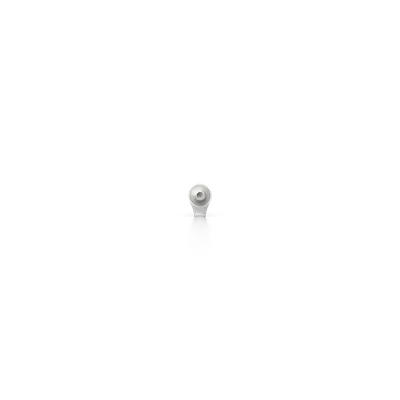

| Antenna Connector | (1) RP-N Female |

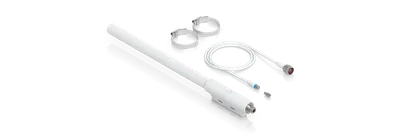

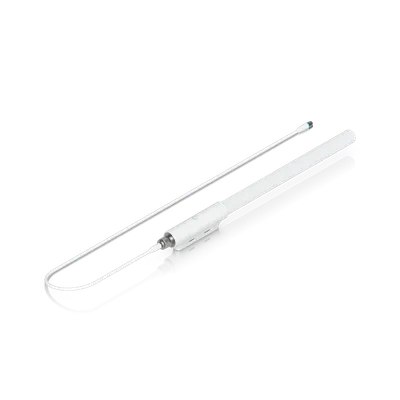

| Antenna Cable | (1) RP-SMA Male (1) RP-N Male |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
