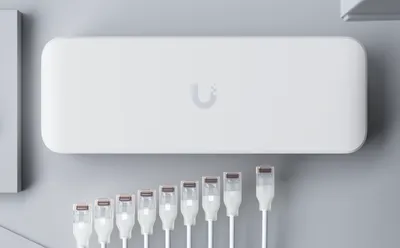

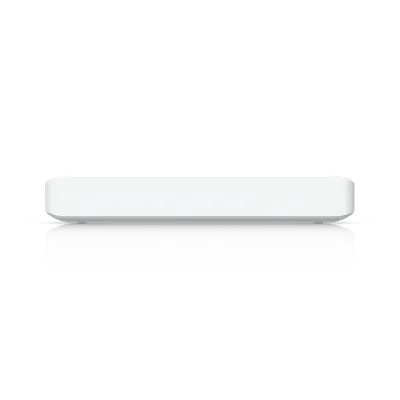

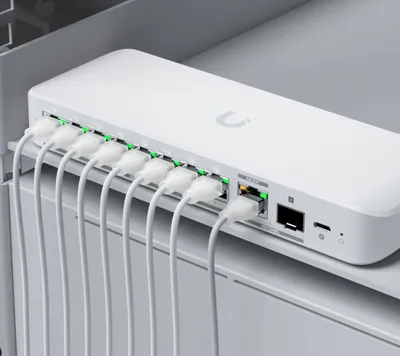

Plan your UniFi Switch Flex 2.5G installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Flex-2.5G-8.

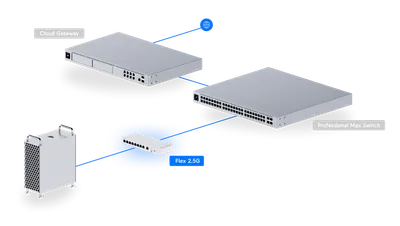

We scope USW-Flex-2.5G-8 around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (1) USB Type-C, 5V DC, 3A (1) PoE+. Max. Power Consumption: 14W with PoE input 14W with AC adapter input. Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3"). Ambient Operating Temperature: -20 to 45° C (-4 to 113° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check port media, uplink capacity and any transceivers or adapters required. Devices that need PoE may require a separate compatible source. We confirm this in the equipment list rather than assuming every Ethernet port supplies power.
The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Flex-2.5G-8. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3") |
|---|---|

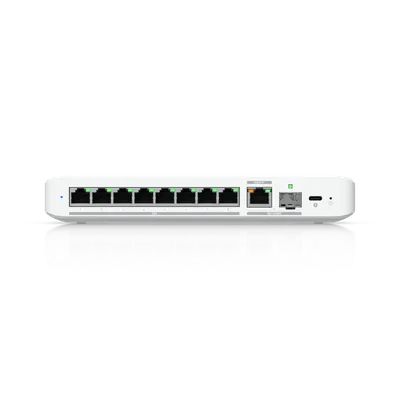

| 2.5 GbE RJ45 | 8 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M)Combo port |
| 10G SFP+ | 1 (10G/1G)Combo port |

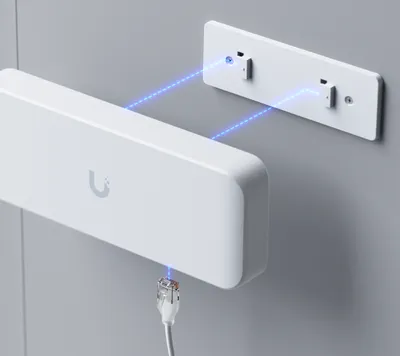

| Form Factor | Compact Desktop, wall, DIN, magneticDIN and Magnetic are sold separately |
| Switching Capacity | 60 Gbps |
|---|---|
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Max. Power Consumption | 14W with PoE input 14W with AC adapter input |
|---|---|
| Power Method | (1) USB Type-C, 5V DC, 3A (1) PoE+ |
| Power Input Method | USB Input PoE |
| Power Supply | AC/DC, external, 15W |
| Supported Voltage Range | 4.8—5.2V DC/USB 44V—57V PoE |
| Management | Ethernet |
| Weight | 395 g (0.87 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Network | Version 9.0.114 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
