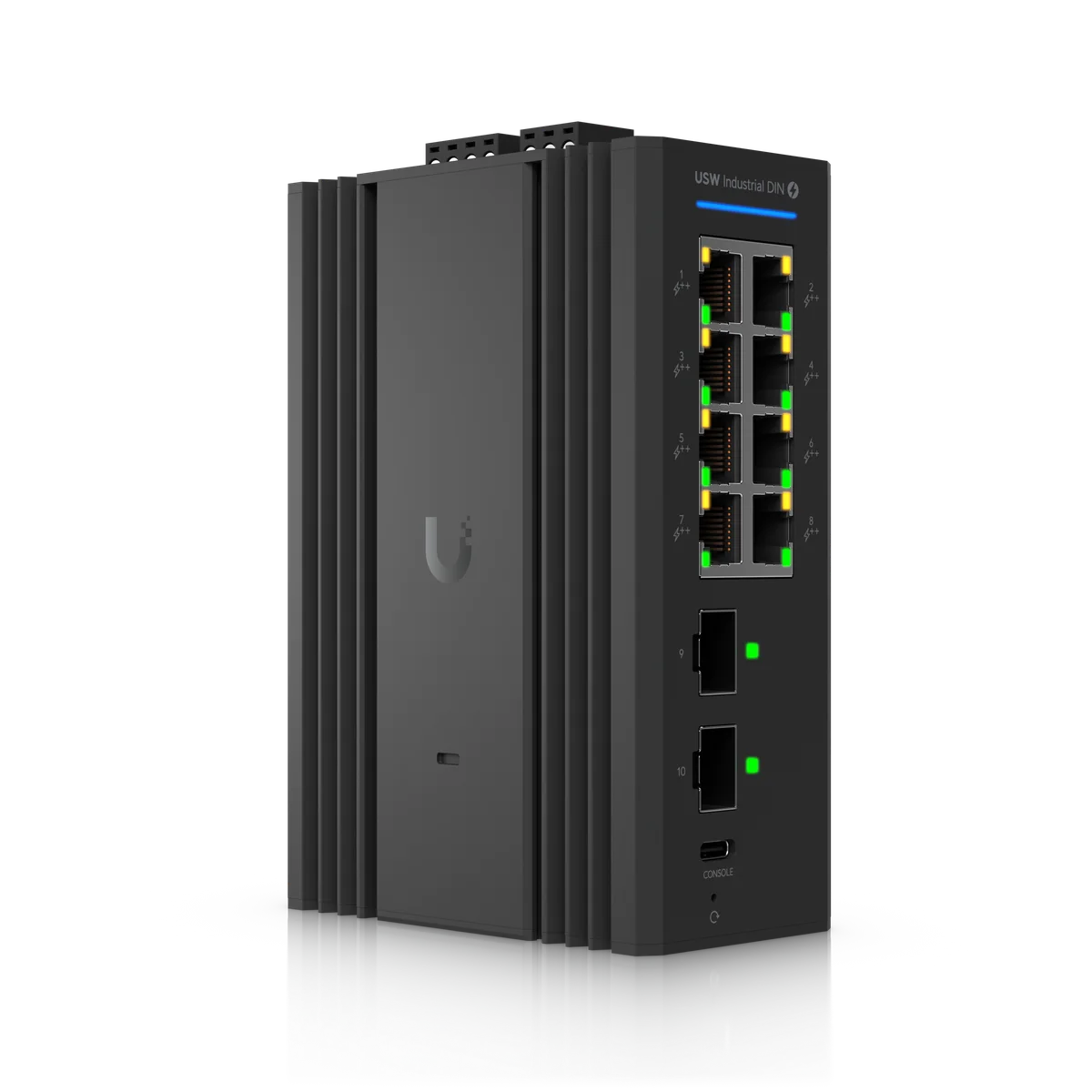

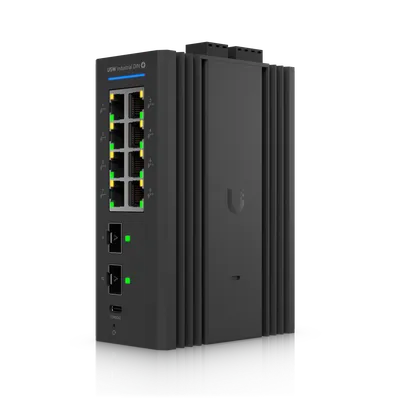

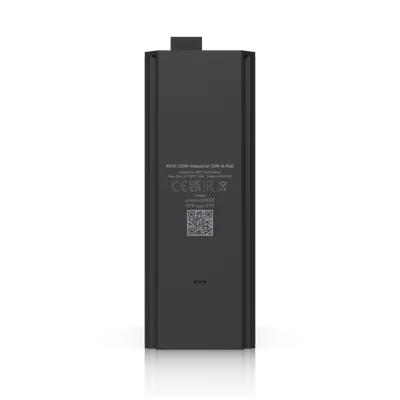

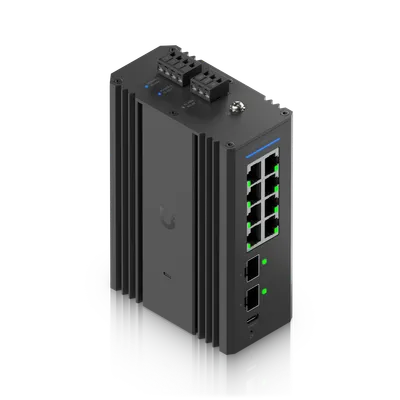

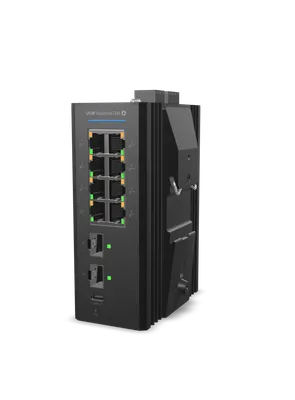

Plan your UniFi Switch Industrial DIN 8 PoE installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Industrial-DIN-8-PoE.

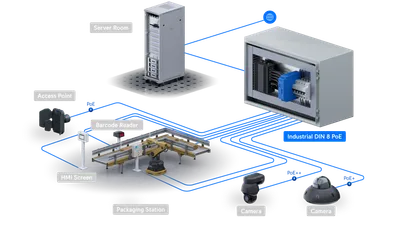

We scope USW-Industrial-DIN-8-PoE around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (2) 2-pin DC inputs with terminal block (Power supply not included). Max. Power Consumption: 12W (Excluding PoE Output) 492W (Including PoE Output). Dimensions: 139 x 100 x 52 mm (5.5 x 3.9 x 2.1"). Ambient Operating Temperature: -30 to 70° C (-22 to 158° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
The port power standard and total PoE budget are separate checks. We total the specified endpoint requirements, check per-port compatibility and allow for agreed future devices. The device count alone is not enough to establish whether the switch can power the installation.
The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Industrial-DIN-8-PoE. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 139 x 100 x 52 mm (5.5 x 3.9 x 2.1") |
|---|---|

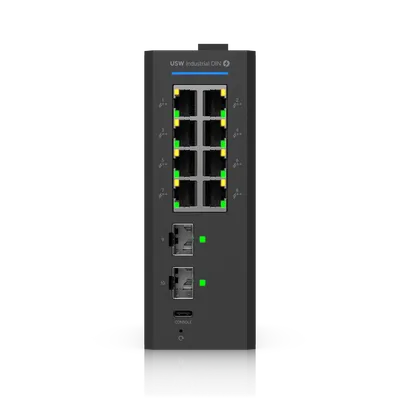

| 1 GbE RJ45 | 8 (All PoE++) |
| 1G SFP | 2 |
| Console | 1 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | Max. 480WBased on power supply capability |
| Redundancy | (2) DC inputs |

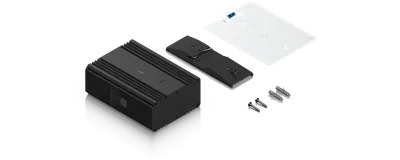

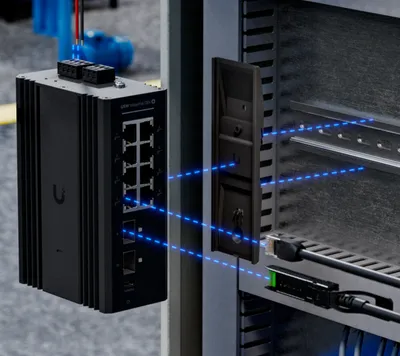

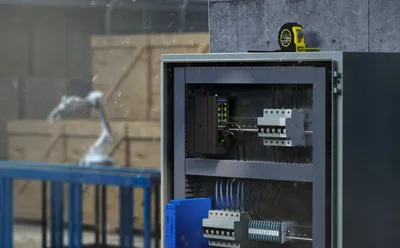

| Form Factor | Compact DIN rail and wall-mountableMounts included |
| Switching Capacity | 20 Gbps |
|---|---|
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
| PoE++ | 8 |
|---|---|
| PoE++ | 60W |
| Max. Power Consumption | 12W (Excluding PoE Output) 492W (Including PoE Output) |
| Power Method | (2) 2-pin DC inputs with terminal blockPower supply not included |
| Power Input Method | DC input |
| Supported Voltage Range | 44–57V DC50–57V required for PoE+/PoE++ output |
| Management | Ethernet Serial Console |
| Weight | Without mount: 910 g (2 lb) With plastic mount: 930 g (2.1 lb) |
| Enclosure Material | Aluminum |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
