Plan your UniFi Switch Ultra installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USW-Ultra.

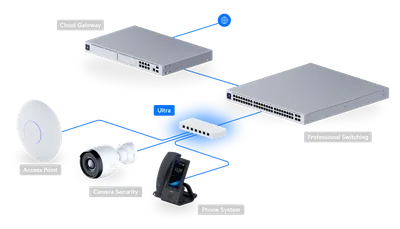

We scope USW-Ultra around the number and type of devices it will connect. Port speeds and uplinks need to match the equipment at both ends. A switch selected for cameras can have different requirements from one serving high-speed access points, workstations or another cabinet.
Power Method: (1) AC/DC adapter (Excluded) (1) PoE++. Max. Power Consumption: 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input. Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3"). Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We check port media, uplink capacity and any transceivers or adapters required. Devices that need PoE may require a separate compatible source. We confirm this in the equipment list rather than assuming every Ethernet port supplies power.
The work includes the agreed mounting, patching, labels and UniFi adoption. We confirm the switch management network and any VLAN or uplink settings with the system owner, then test the connected devices. Rack airflow and access remain part of the physical layout.
Manufacturer specifications for USW-Ultra. Check the selected model, regional version and current software requirements during assessment.

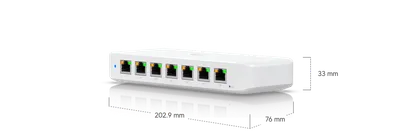

View manufacturer source| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
|---|---|

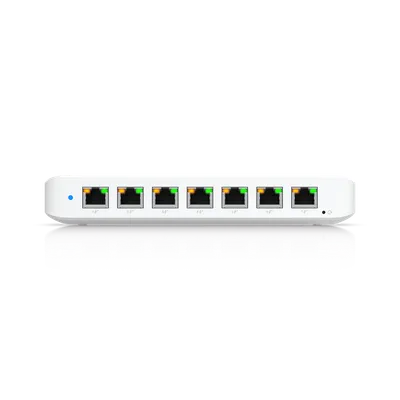

| 1 GbE RJ45 | 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202WAt 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) |

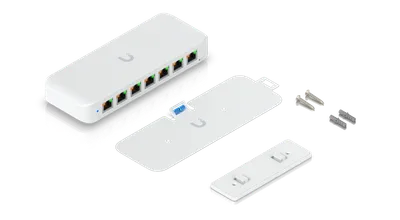

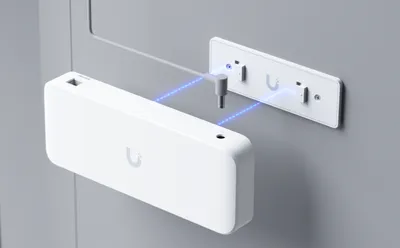

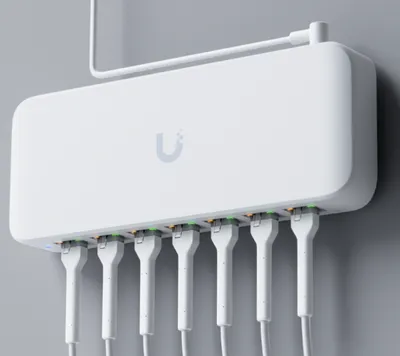

| Form Factor | Compact desktop, wall, magnetic |
| Switching Capacity | 16 Gbps |
|---|---|
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| PoE+ | 7 |
|---|---|
| PoE++ | 1 |
| PoE+ | 30W |
| Max. Power Consumption | 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |

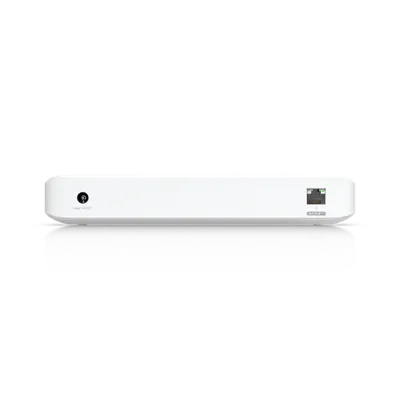

| Power Method | (1) AC/DC adapter (Excluded) (1) PoE++ |
| Power Input Method | DC Input PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Heat Dissipation | 31 BTU/hr (Excluding PoE Output) |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06367-24-08356 |
| UniFi Network | Version 8.0.28 and later |
|---|
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
