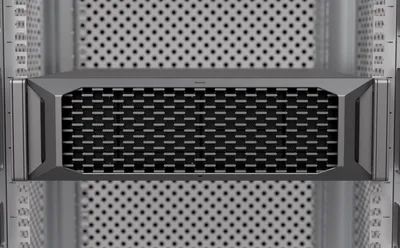

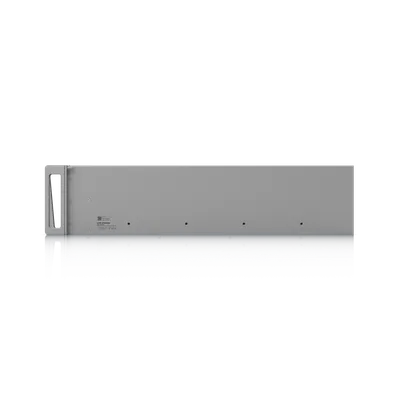

Plan your UniFi Enterprise NVR Core installation in Perth with Servicewest. We assess the site and supporting equipment before specifying ENVR-Core.
The ENVR-Core performs a supporting role in the camera system. We check its exact function, compatible host equipment, software requirements and network or display connections before including it in the scope. Its supported application determines how it can be used.
Power Method: (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable). Max. Power Consumption: 237W (Excluding HDD power consumption). Networking Interface: (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M) (10G/25G mixed-speed operation across ports not supported (1G/10G and 1G/25G mixing supported)). Dimensions: 481.4 x 550 x 132 mm (19 x 21.7 x 5.2"). Ambient Operating Temperature: 10 to 35° C (50 to 95° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
We review the available interface, power source and the location where the device will be used. Display, processing and notification devices each have different dependencies. The manufacturer specifications below are checked against the system already on site.
Configuration and handover cover the specific viewing, notification or processing task agreed for this product. User access and compatibility limits are explained alongside the wider Protect installation.
Manufacturer specifications for ENVR-Core. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Managed Cameras (grid) | 500 HD or 300 4K |
|---|---|
| Ports | GbE MGMT + 2 SFP28 + 2 SFF-8644 |
| Power | 2 Hot-Swap PSUs |
| Security | RAID Protection |
| Storage | 16 3.5" HDD / SSD |
| App Suite | UniFi Protect |
| Dimensions | 481.4 x 550 x 132 mm (19 x 21.7 x 5.2") |
|---|---|
| Managed Cameras | (500) HD (400) 2K (300) 4K |
| Managed Access Hubs | 300+Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |

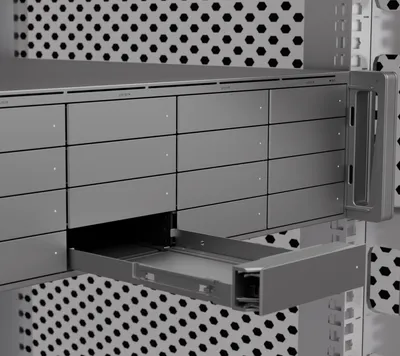

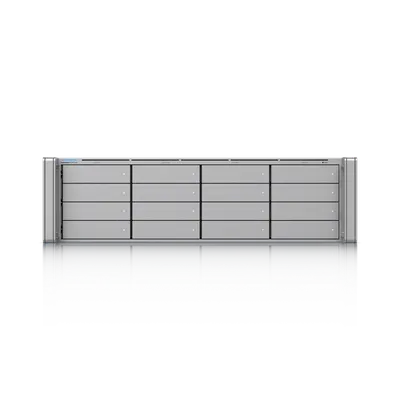

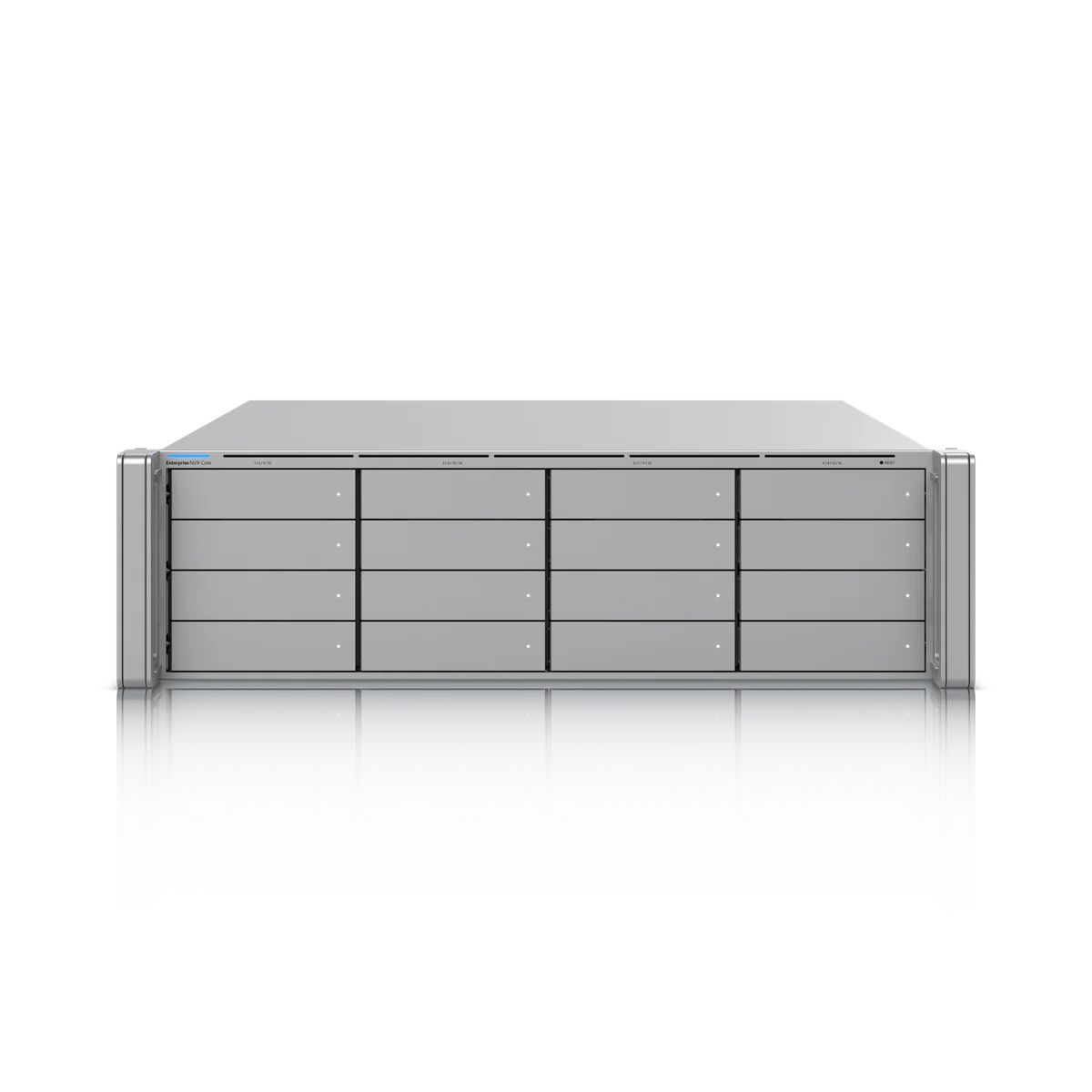

| Storage Capacity | (16) 3.5" drive bays |

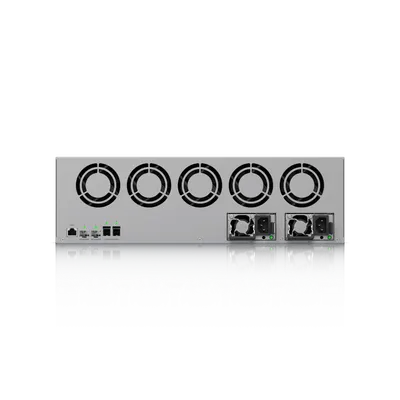

| Networking Interface | (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M)10G/25G mixed-speed operation across ports not supported (1G/10G and 1G/25G mixing supported) |
| Expansion Port | (2) SFF-8644 ports (24G) |

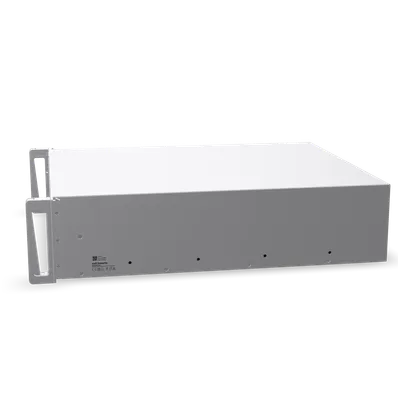

| Form Factor | Rack Mount (3U) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSDExpansion requires UACC-ESE-16 (Coming soon) |
|---|---|
| Max. Power Budget for Drives | 313W |
| Max. Power Consumption | 237WExcluding HDD power consumption |

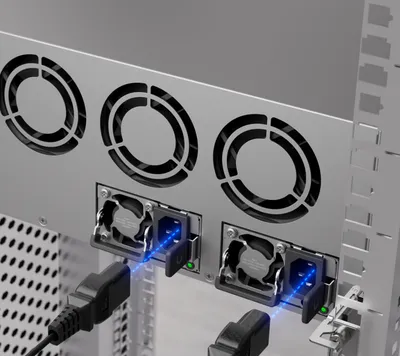

| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 128-core Arm® v8.2 at 2.6 GHz |
| Memory | 64 GB |
| Management | Ethernet Bluetooth |
| Weight | Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

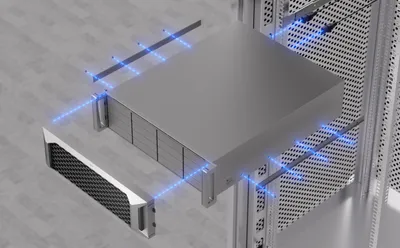

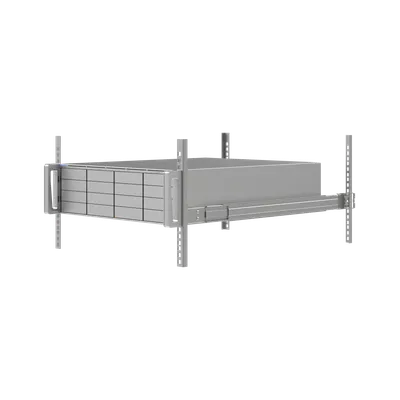

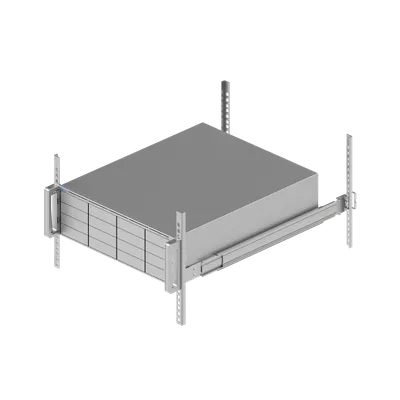

| Slide Rails | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42") |

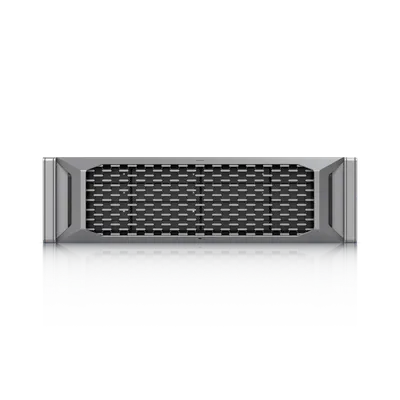

| Faceplate | 3U Bezel Lite (Included) 3U Bezel (Optional) |
| Ambient Operating Temperature | 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
|---|

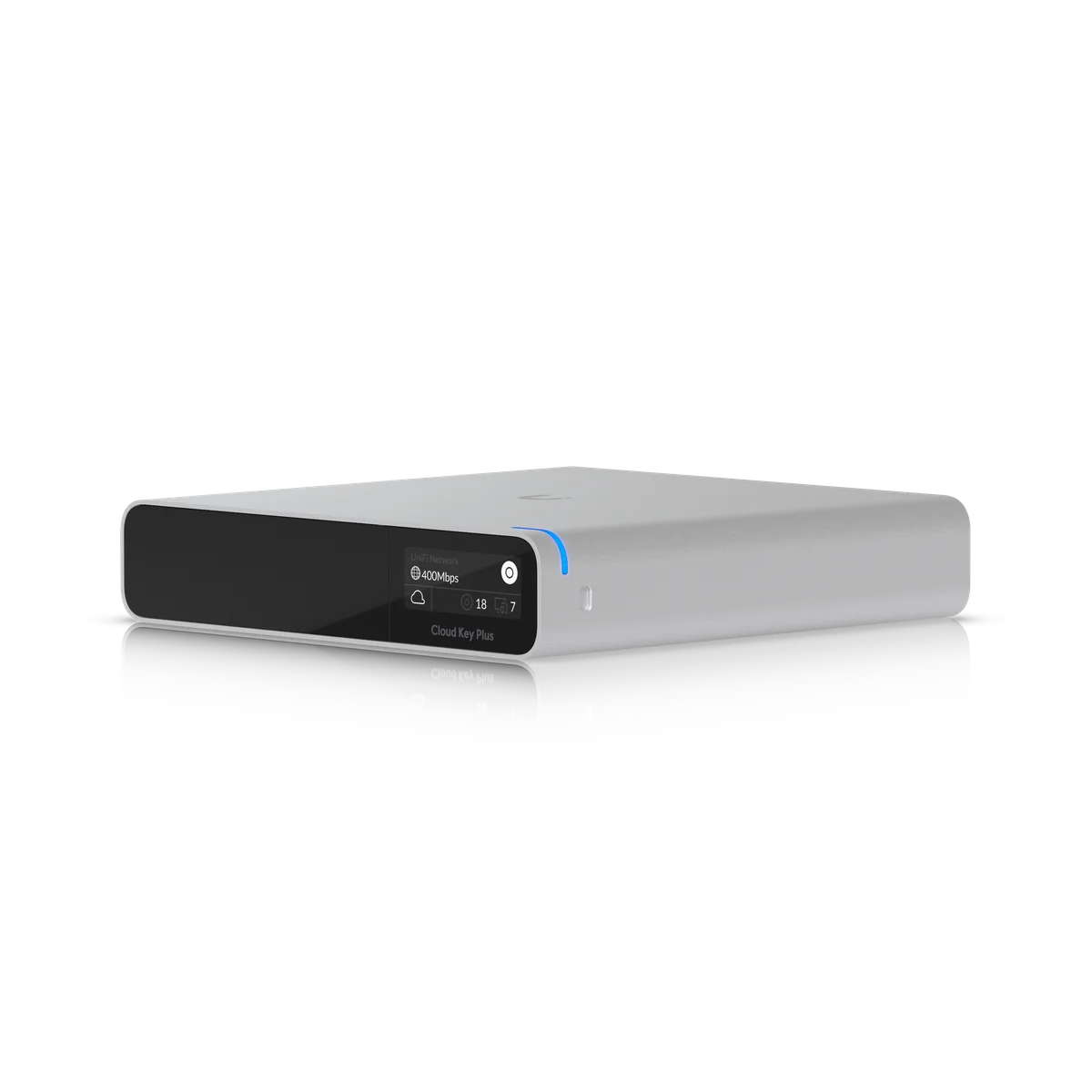

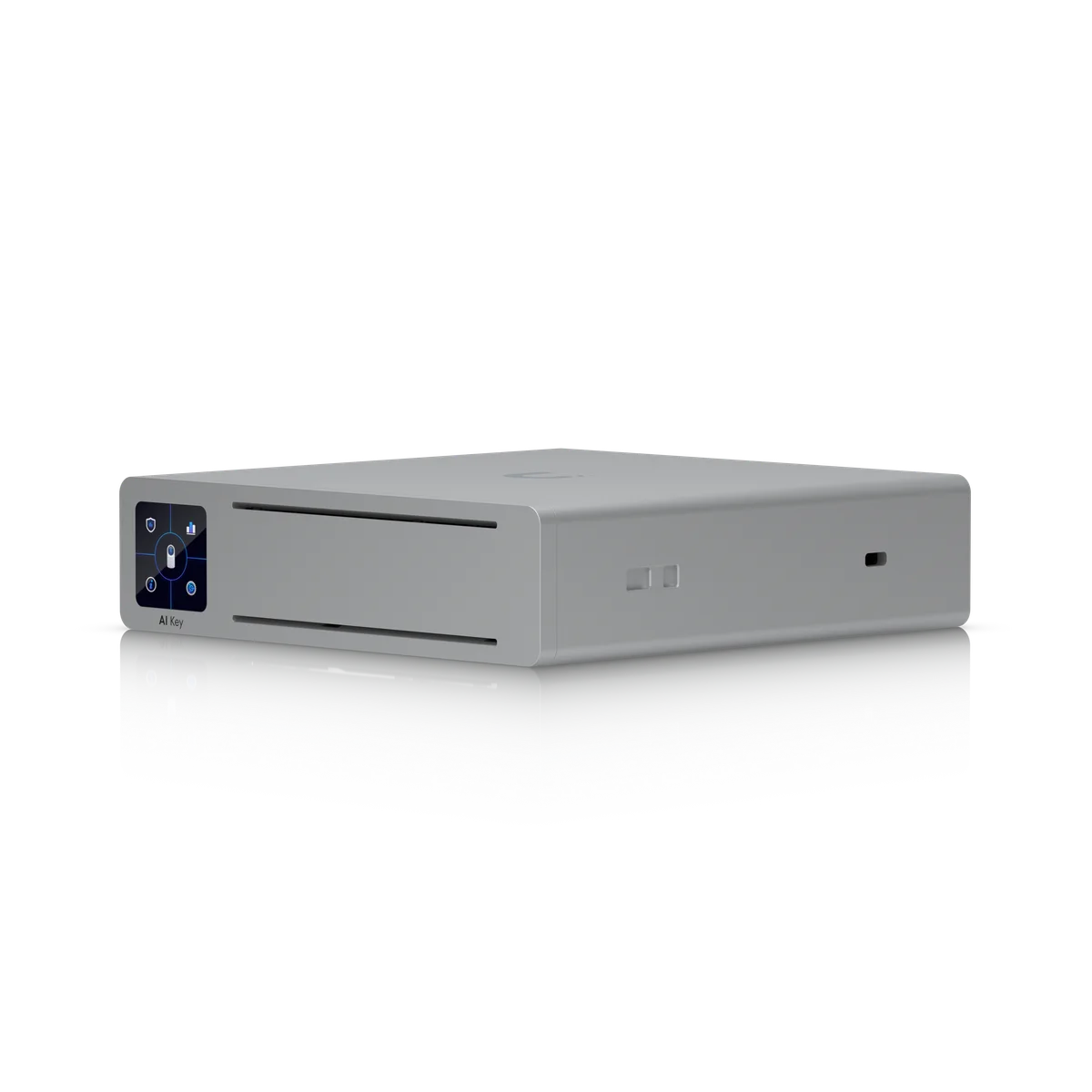

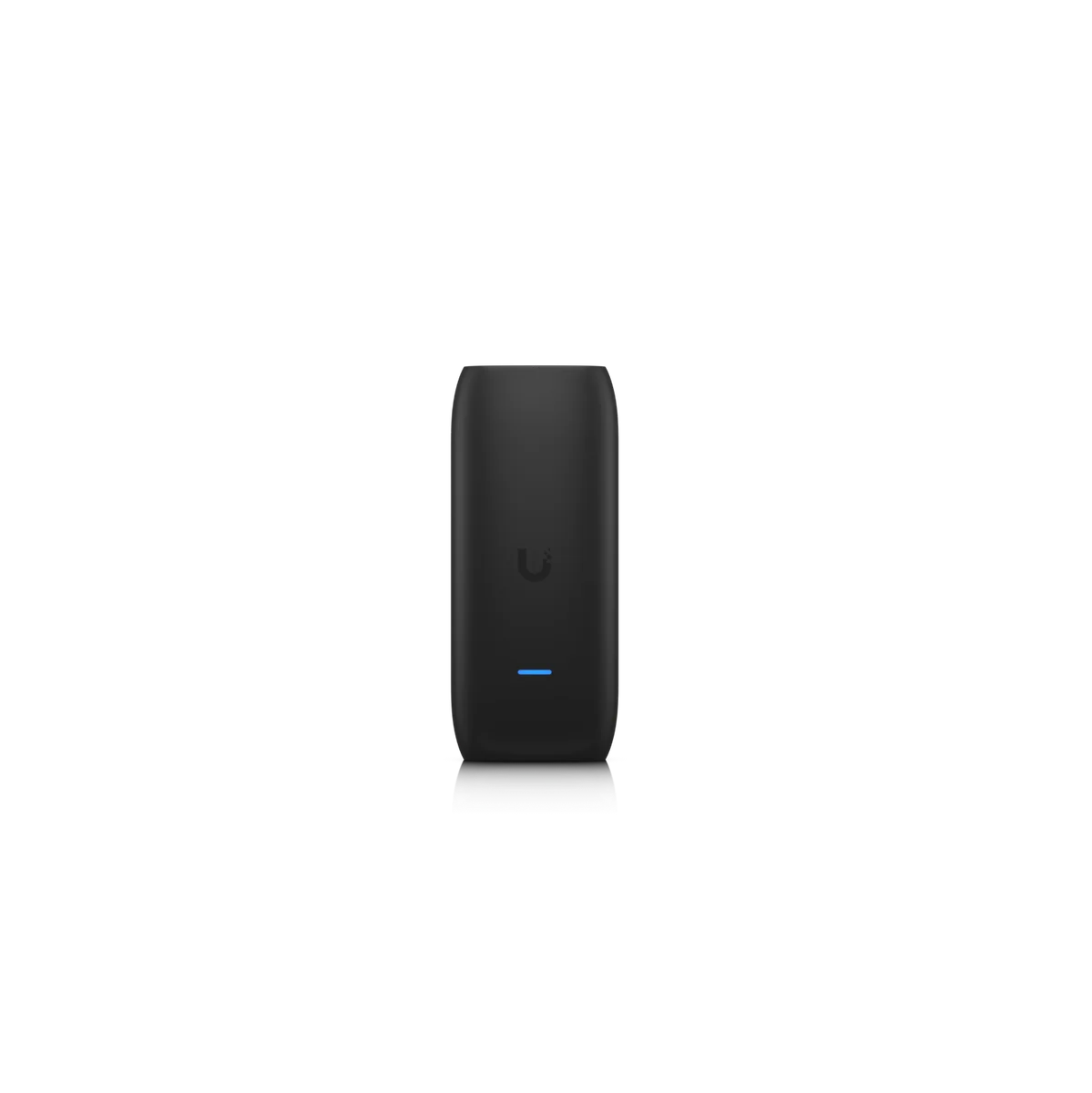

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
