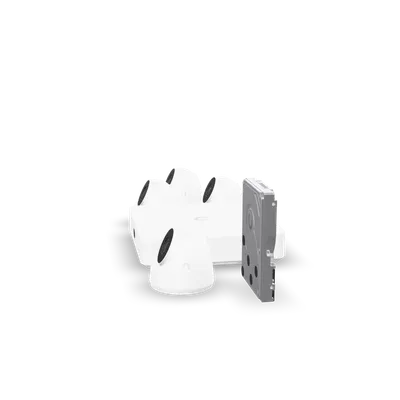

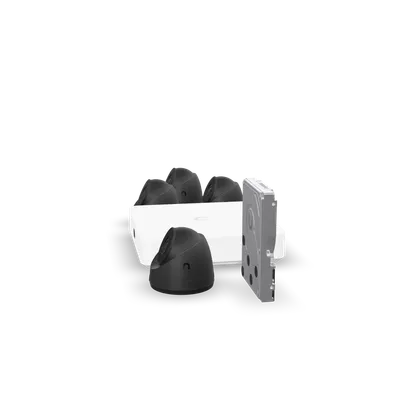

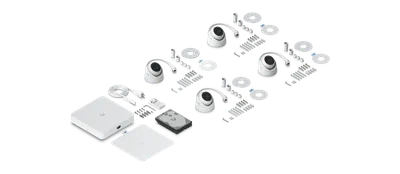

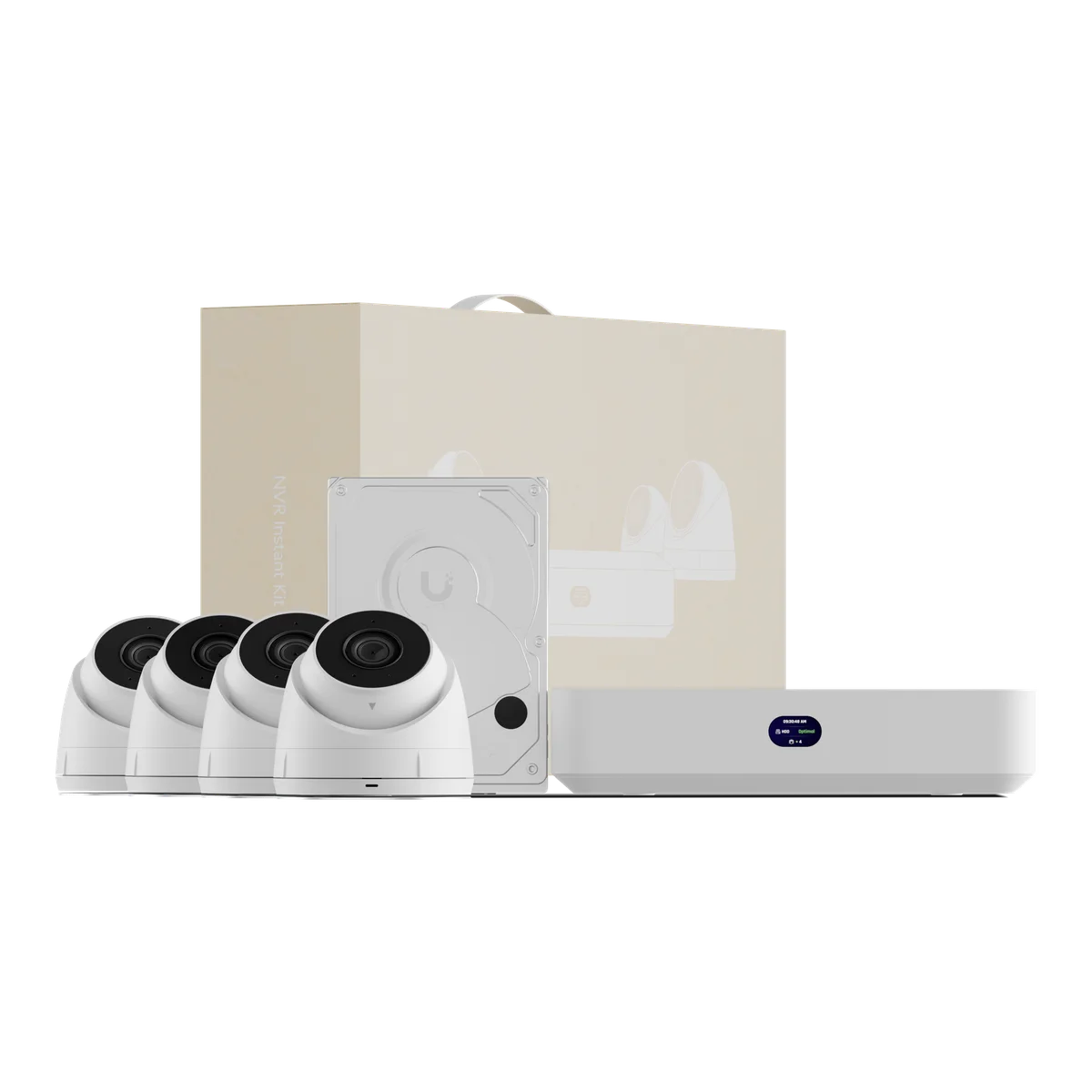

Plan your UniFi Network Video Recorder Instant Kit installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UNVR-Instant-Kit.
Before installing UNVR-Instant-Kit, we review the intended workload, available drives and the network connection. Camera recording and shared file storage are different jobs; the application supported by this exact model determines how it can be used.
Power Method: Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz. Power Method: PoE. Power Method: 5V/12V input. Max. Power Consumption: 9W (Excluding PoE output & HDD power consumption). Max. Power Consumption: 4W. These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Disk capacity is not the same as usable protected storage. Drive compatibility, redundancy, retention and the number of simultaneous users or cameras affect the design. We establish who is responsible for backups and recovery, and document the agreed arrangement.
The scope covers agreed mounting, cabling, setup and permissions. We test the relevant recording or file-access functions with the authorised users. Ventilation, power and access to replace a drive are included in the physical assessment.
Manufacturer specifications for UNVR-Instant-Kit. Check the selected model, regional version and current software requirements during assessment.

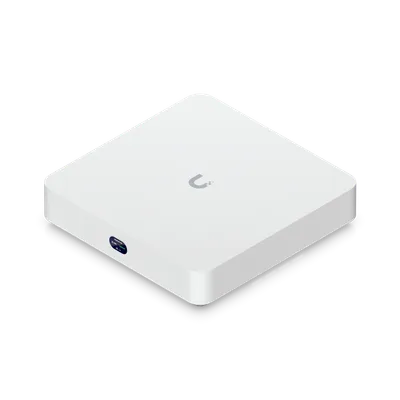

View manufacturer source| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
|---|---|
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |

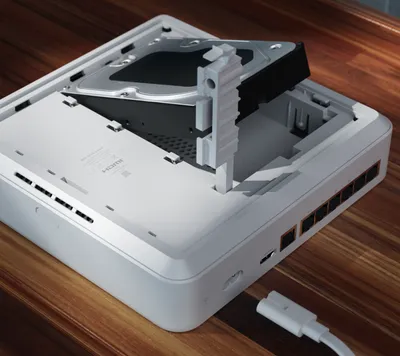

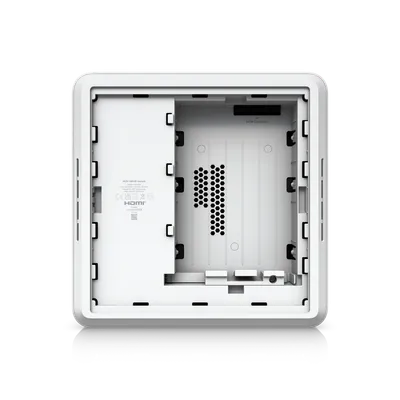

| Storage Capacity | (1) 3.5" drive bay |

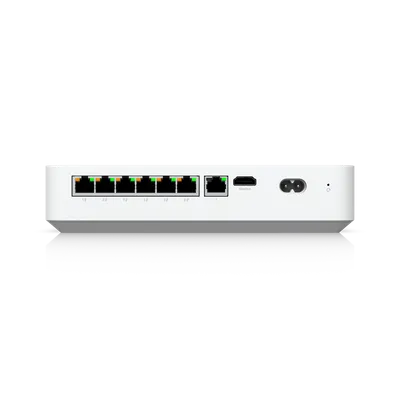

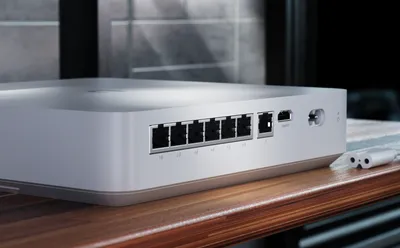

| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |

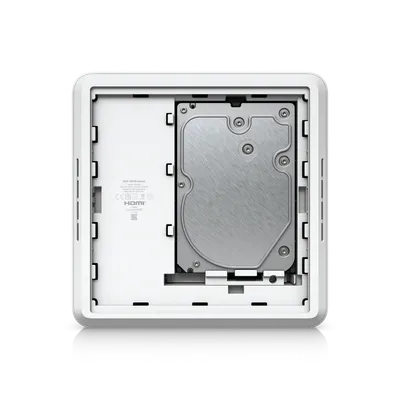

| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9WExcluding PoE output & HDD power consumption |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, Electrical Safety |

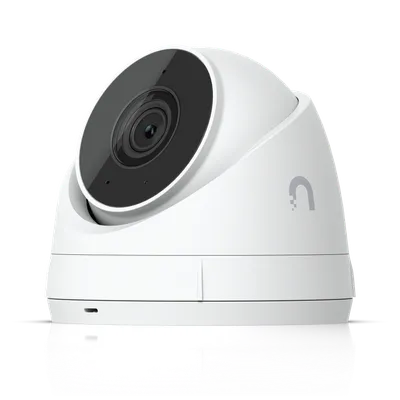

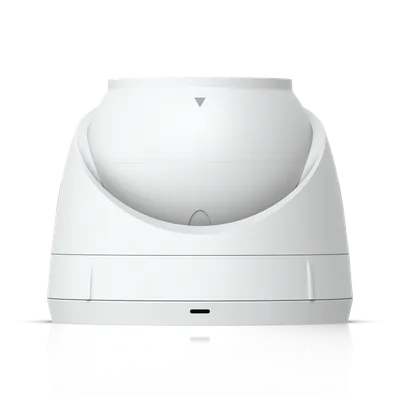

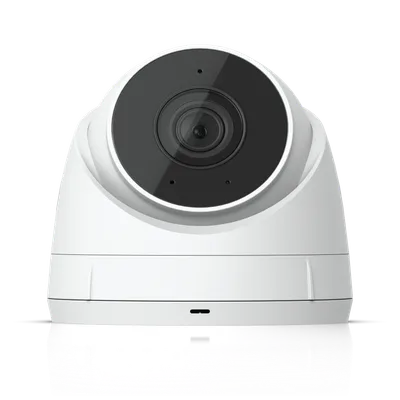

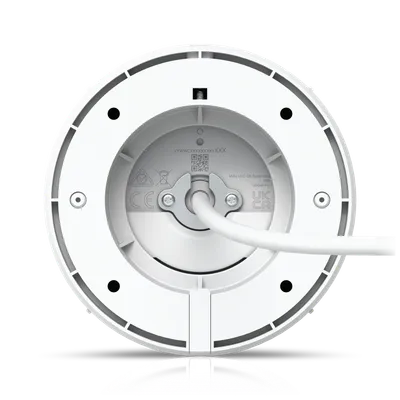

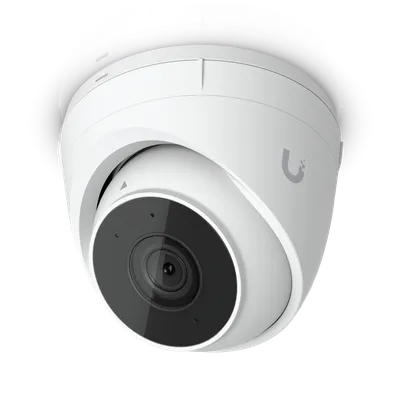

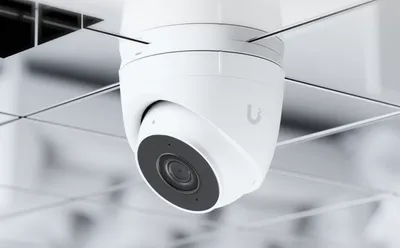

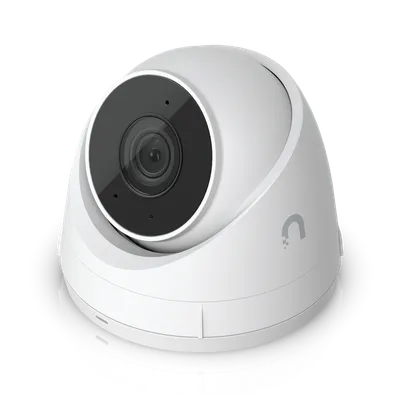

| Dimensions | ⌀90 x 71.2 mm (⌀3.5 x 2.8") |
|---|---|
| IR Night Vision | 30 m (98 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

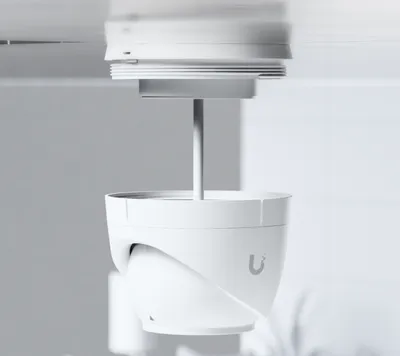

| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Polycarbonate |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |

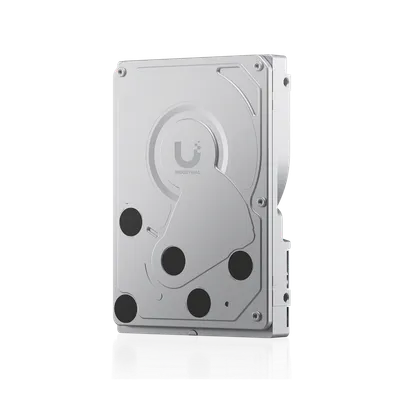

| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
|---|---|
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
