Plan your UniFi Power Distribution Pro installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USP-PDU-Pro.
We review what USP-PDU-Pro needs to do within your property and which UniFi applications or supporting devices it requires. Existing network capacity, mounting, account access and the Australian model are checked before the equipment list is finalised.
Power Method: 125V AC, 15A Max., 50/60 Hz. Max. Power Consumption: 125V AC: 1,875W. Networking Interface: (1) 100 MbE RJ45 port (3) GbE RJ45 ports. Dimensions: 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Power connections, the intended load and the required backup function determine suitability. Runtime varies with the connected equipment and battery condition. We confirm the Australian configuration and installation responsibilities before specifying the unit.
Configuration and testing cover the functions agreed for this installation. We explain the controls and assign ownership of routine administration, updates and any backup responsibilities. Supporting equipment is selected for this exact model.
Manufacturer specifications for USP-PDU-Pro. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2") |
|---|---|
| Weight | Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb) |
| Enclosure Material | SGCC steel |
| Management | Ethernet |
|---|---|
| Networking Interface | (1) 100 MbE RJ45 port (3) GbE RJ45 ports |
| Power Method | 125V AC, 15A Max., 50/60 Hz |
| Power Supply | AC/DC internal, 40W |
| Max. Power Consumption | 125V AC: 1,875W |

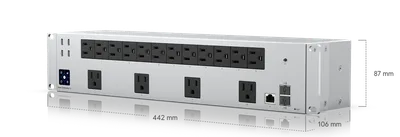

| Power Output | (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total) |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset (1) Circuit breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |

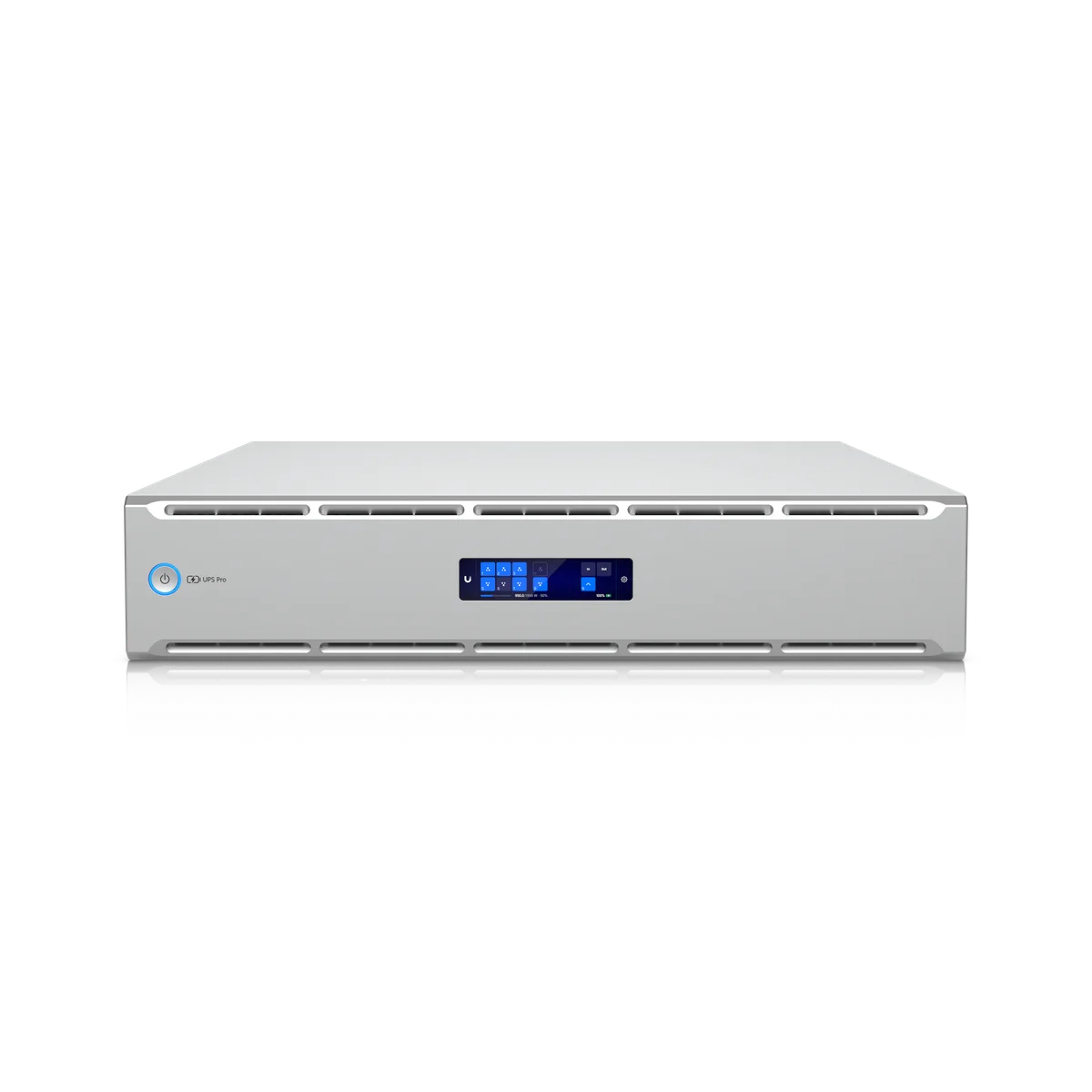

Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
