Plan your UniFi Protect All-In-One Sensor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UP-Sense.

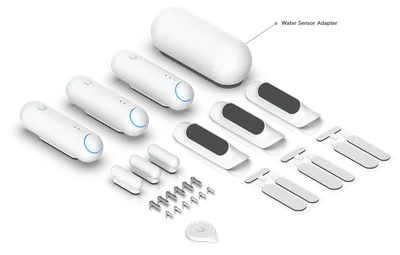

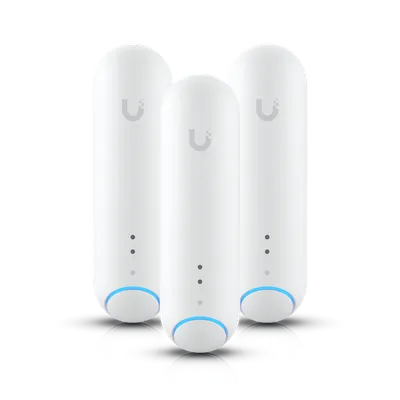

Pack Type: Single Unit · 3-Pack
The Protect All-In-One Sensor (UP-Sense) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: Lithium battery CR123A. Networking Interface: Bluetooth 5.0, BLE. Dimensions: ⌀24 x 83.5 mm (⌀0.9 x 3.3"). Ambient Operating Temperature: 0 to 45° C (32 to 113° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for UP-Sense. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | ⌀24 x 83.5 mm (⌀0.9 x 3.3") |
|---|---|
| Weight | 50.2 g (1.8 oz) |
| Enclosure Material | Polycarbonate |

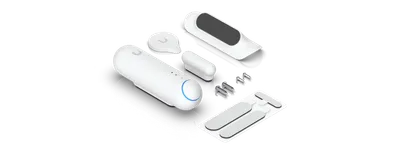

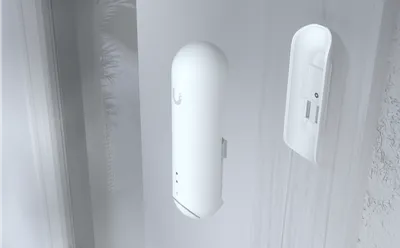

| Mount Material | Flat wall mount: polycarbonate, adhesive Corner mount: polycarbonate, adhesive |

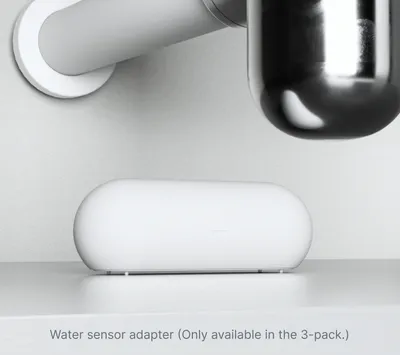

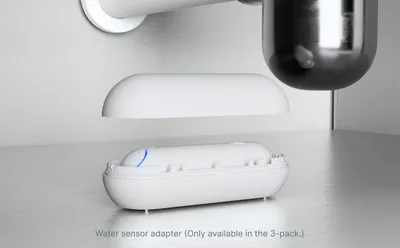

| Additional Gear | Magnet (1) Water sensor adapter (Only available in the 3-pack.) |
| Networking Interface | Bluetooth 5.0, BLE |
|---|---|
| BLE Connectivity from SuperLink or a UniFi Access Point in an Indoor Setting | Must be connected to an up-to-date Bluetooth-supported UniFi access point. Learn MoreLong-range BLE coverage is comparable to WiFi coverage. |
| Power Method | Lithium battery CR123A |
| Antennas | (1) 2.4GHz |
| LEDs | R/B/W |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 45° C (32 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 08492-22-08356 |
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
