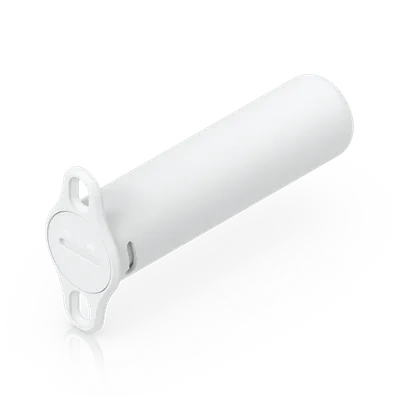

Plan your UniFi Recessed Entry Sensor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USL-Entry-R.
The Recessed Entry Sensor (USL-Entry-R) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.

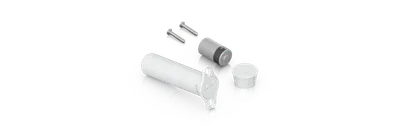

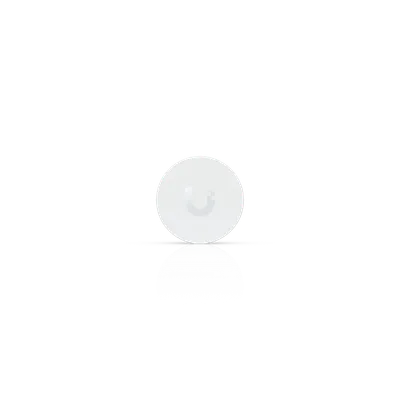

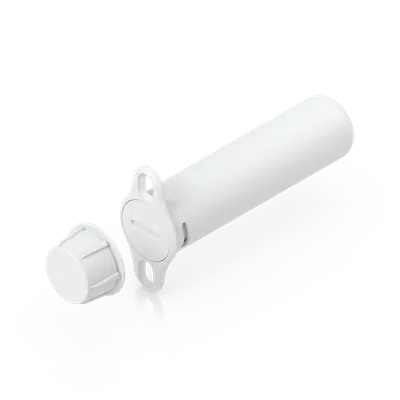

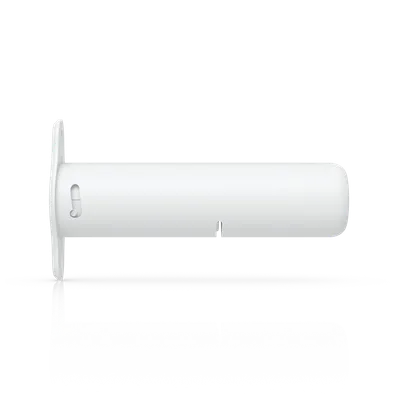

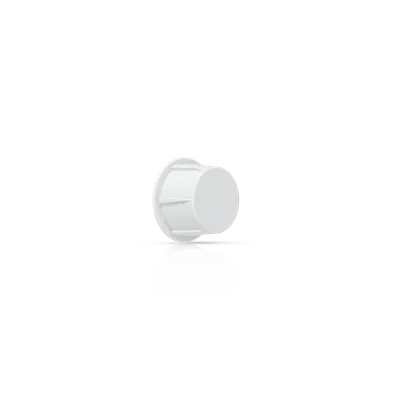

Power Method: Lithium battery CR2. Max. Power Consumption: 15mW. Mounting: Screw mount. Dimensions: Device: 44 x 22 x 74.5 mm (1.7 x 0.9 x 2.9") Magnet: ⌀22 x 12.1 mm (⌀0.9 x 0.5"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

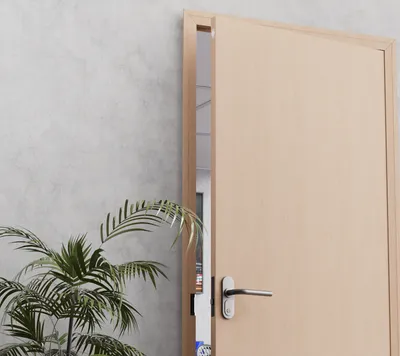

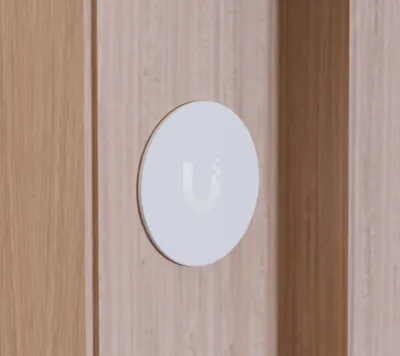

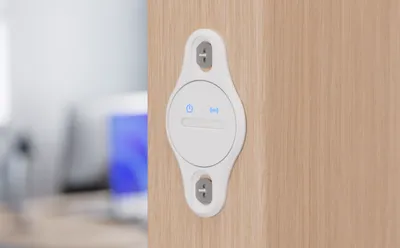

Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for USL-Entry-R. Check the selected model, regional version and current software requirements during assessment.

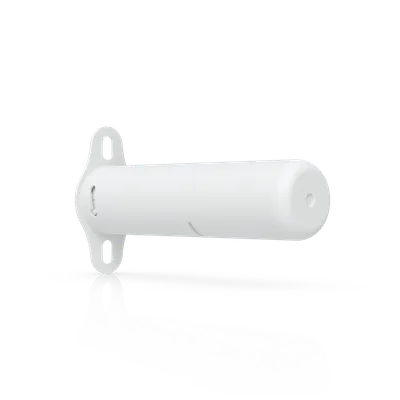

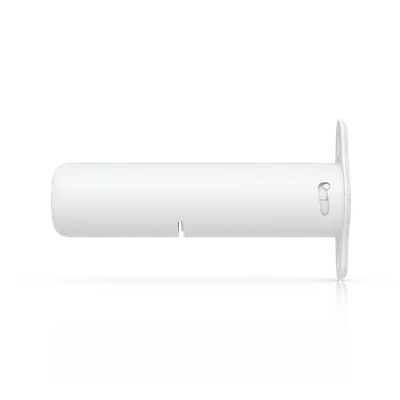

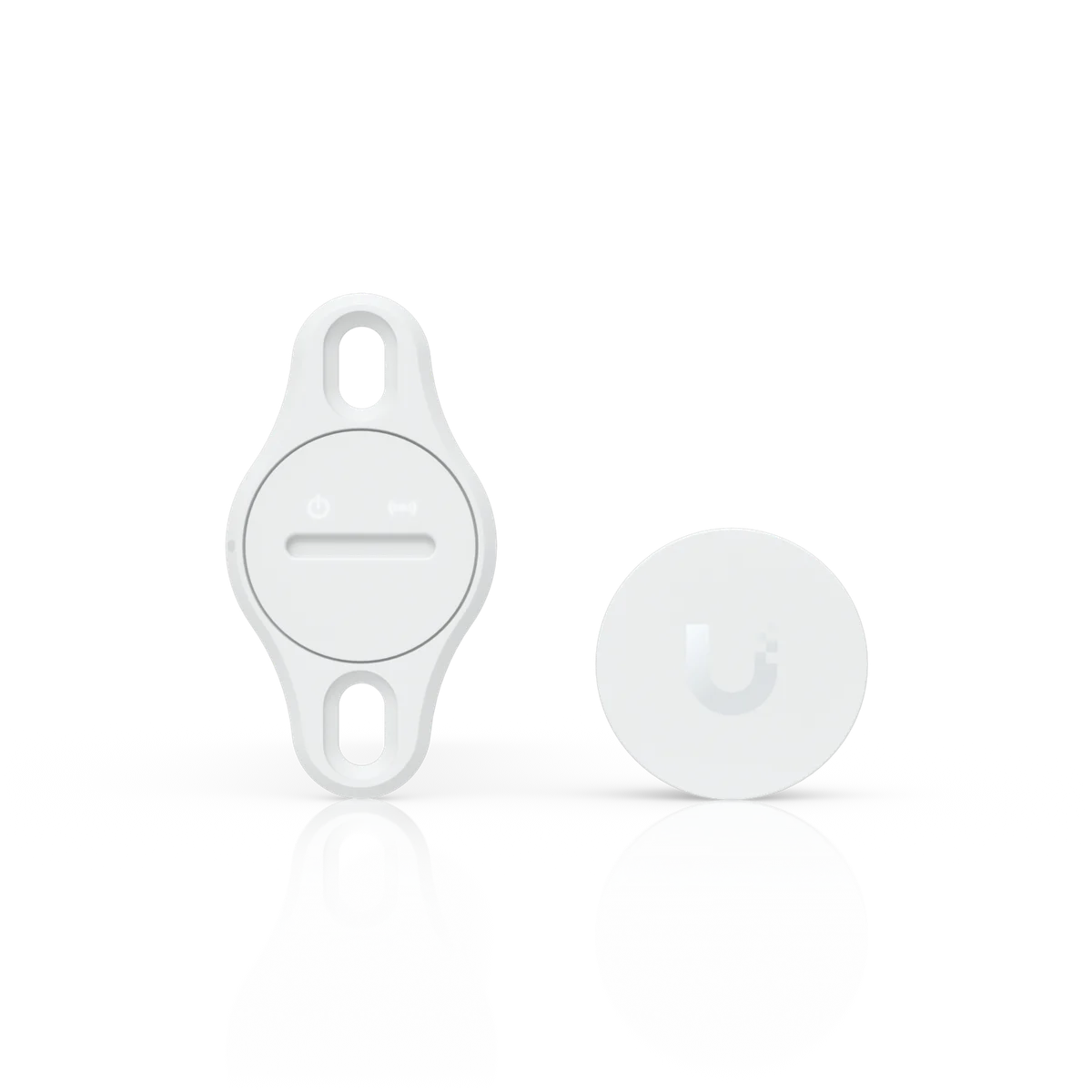

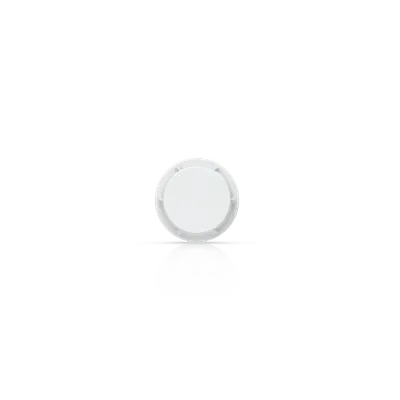

View manufacturer source| Dimensions | Device: 44 x 22 x 74.5 mm (1.7 x 0.9 x 2.9") Magnet: ⌀22 x 12.1 mm (⌀0.9 x 0.5") |
|---|---|

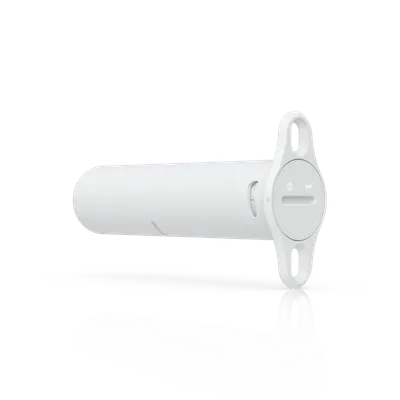

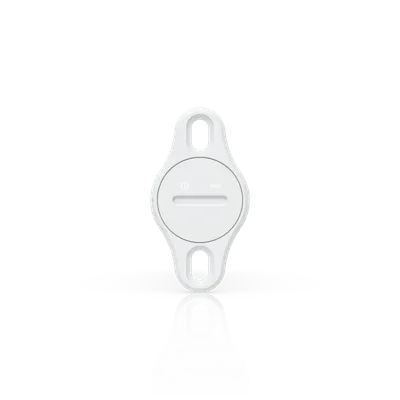

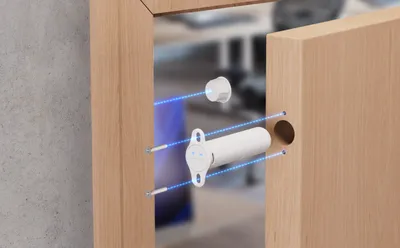

| Mounting | Screw mount |
| UniFi Application Suite | Protect |

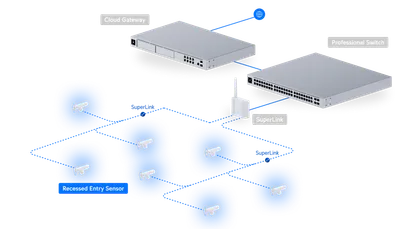

| Connectivity | SuperLink (Proprietary) |
|---|---|
| SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi)Line of Sight (LOS) |
| Max. Power Consumption | 15mW |
|---|---|
| Supported Voltage Range | 3V |

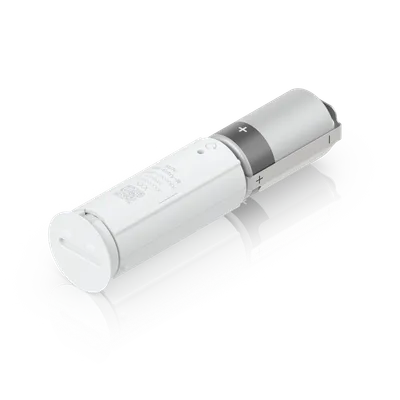

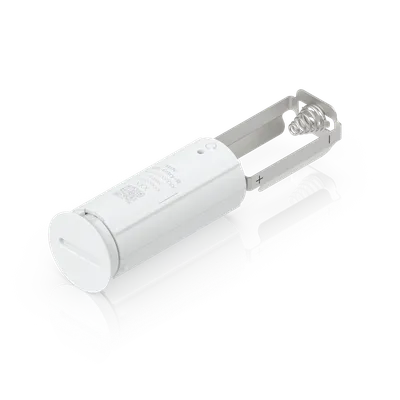

| Power Method | Lithium battery CR2 |
| Battery Life | Up to 3 years |
| Weight | Device: 24 g (0.8 oz) With battery: 34 g (1.2 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory-reset (1) Function button (1) Tamper switch |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
