Plan your UniFi Remote Control KeyFob installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USL-FOB.
The Remote Control KeyFob (USL-FOB) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: (1) Lithium battery CR2450. Max. Power Consumption: 150mW. Dimensions: 67 x 35 x 18.5 mm (2.6 x 1.4 x 0.7"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for USL-FOB. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | 67 x 35 x 18.5 mm (2.6 x 1.4 x 0.7") |
|---|---|
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
|---|---|
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi)Line of Sight (LOS) |
| Max. Power Consumption | 150mW |
|---|---|
| Supported Voltage Range | 3V |

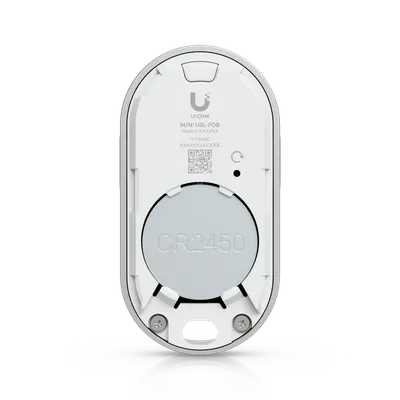

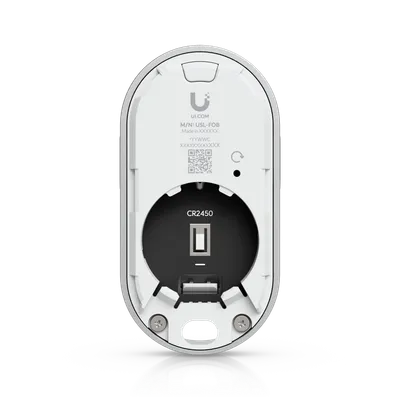

| Power Method | (1) Lithium battery CR2450 |
| Battery Life | Up to 10 years |
| Size | ⌀24.5 x 5 mm (⌀1 x 0.2") |
| Nominal Voltage | 3V |
| Nominal Capacity | 600 mAh |
| Max. Pulse Current | 50 mA |
| Weight | 32 g (1.1 oz) |
| Enclosure Material | Polycarbonate |

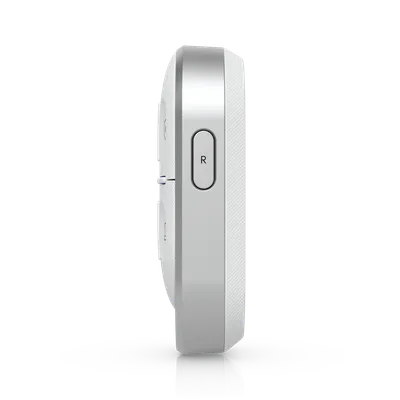

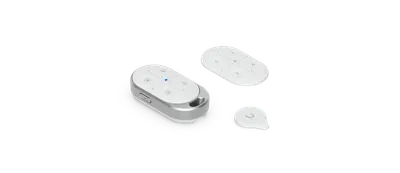

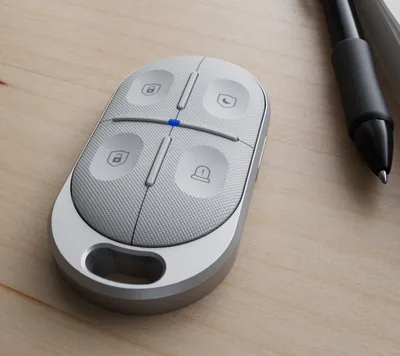

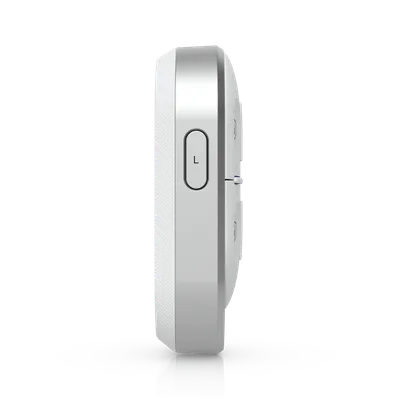

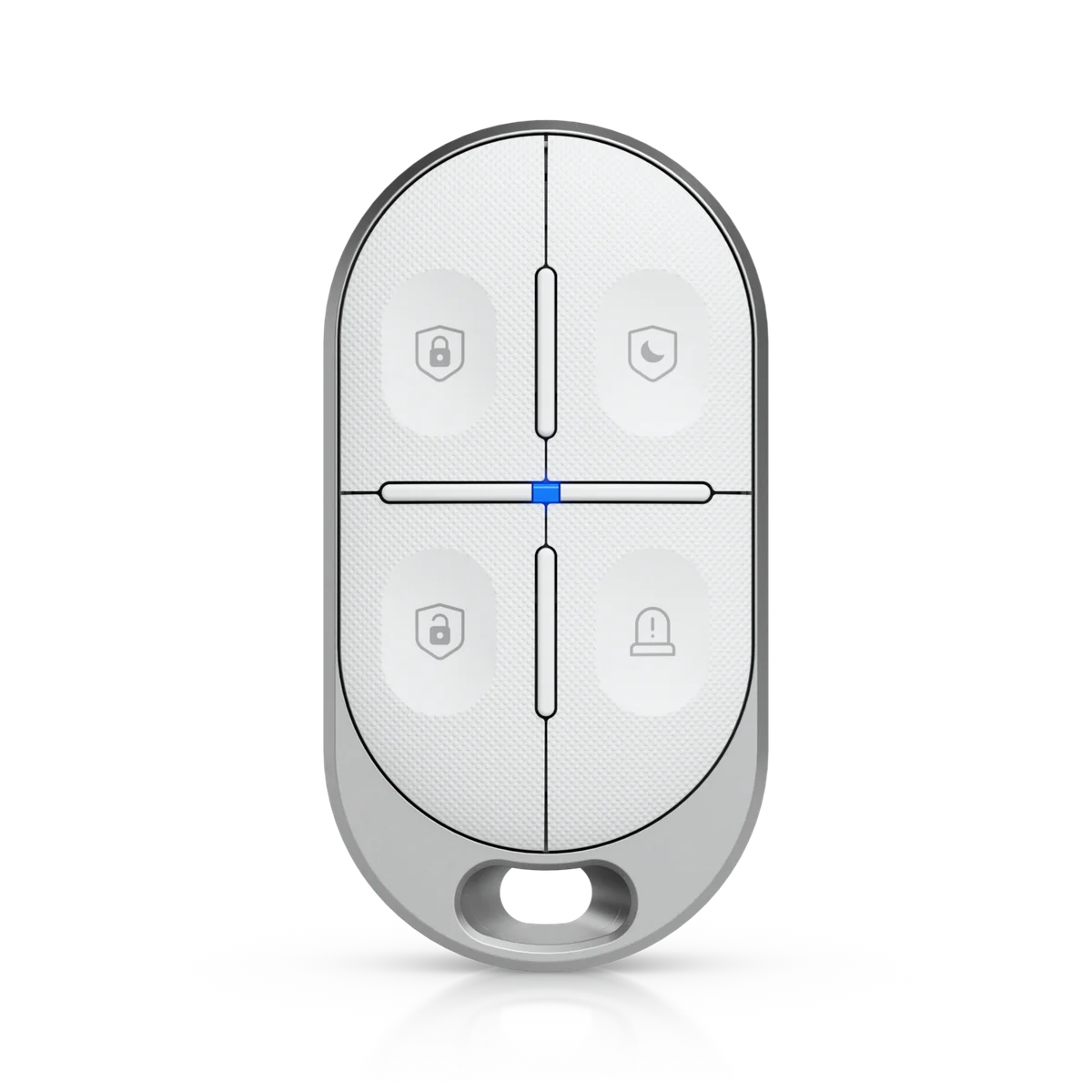

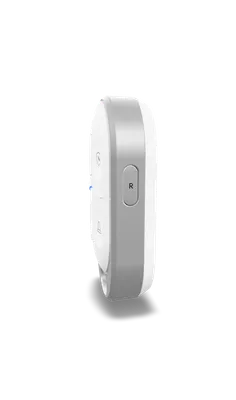

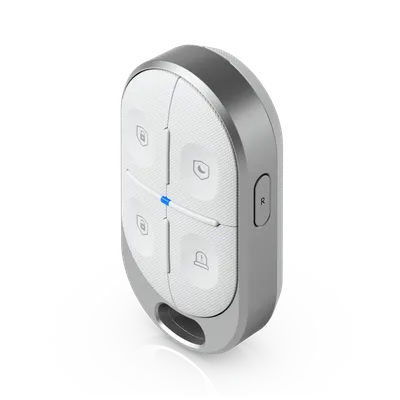

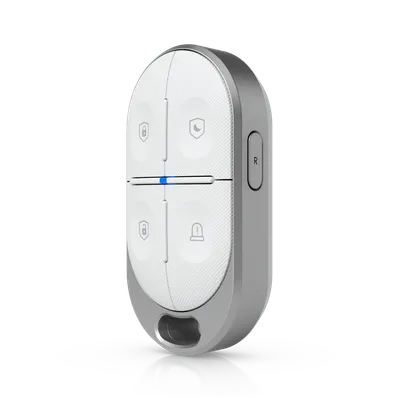

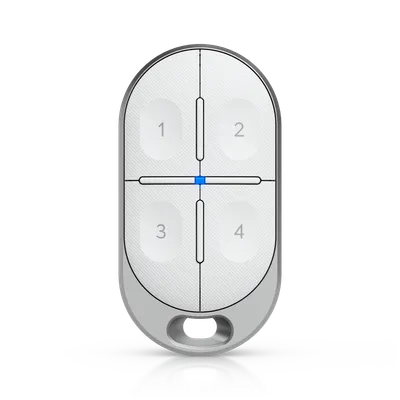

| Buttons | (4) Top buttons: Primary faceplate: Arm, Disarm, Night mode, Panic Secondary faceplate: Numeric (1, 2, 3, 4) for programmable functions (2) Side buttons for programmable functions |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 4200A |
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
