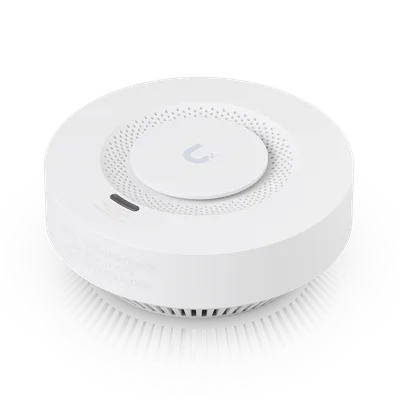

Plan your UniFi Smoke and CO Alarm installation in Perth with Servicewest. We assess the site and supporting equipment before specifying USL-Smoke.
Variant: US Version
The Smoke and CO Alarm (USL-Smoke) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: (1) Replaceable lithium battery CR123A (SuperLink connectivity) (2) Non-replaceable lithium batteries L91 (Smoke & CO alarm). Max. Power Consumption: 510mW. Mounting: Wall and ceiling mount. Dimensions: ⌀120 x 48.5 mm (⌀4.7 x 1.9"). Ambient Operating Temperature: 0 to 40° C (32 to 104° F). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.

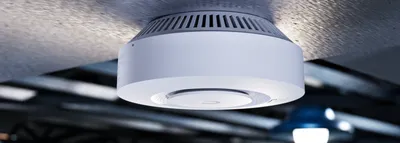

Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for USL-Smoke. Check the selected model, regional version and current software requirements during assessment.

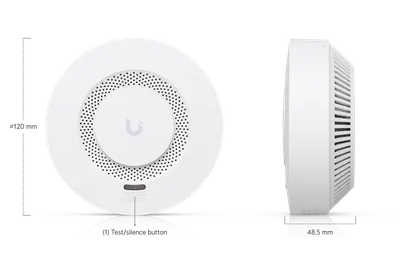

View manufacturer source| Dimensions | ⌀120 x 48.5 mm (⌀4.7 x 1.9") |
|---|---|

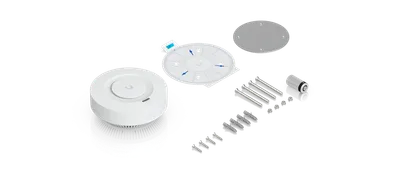

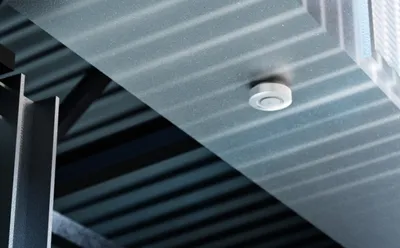

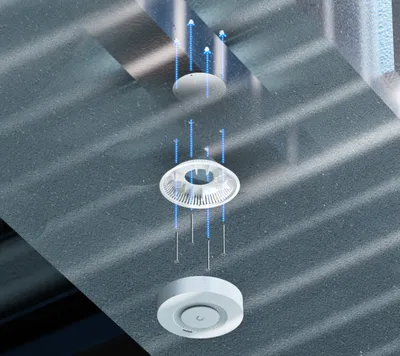

| Mounting | Wall and ceiling mount |
| UniFi Application Suite | Protect |

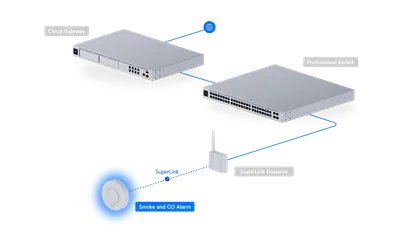

| Connectivity | SuperLink (Proprietary) |
|---|---|
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi)Line of Sight (LOS) |
| Alarm Sound Level | 85dB @ 3m |
| Other | Siren: Alarm sound level, 85dB at 3 m (9.8 ft) |
| Max. Power Consumption | 510mW |
|---|---|
| Supported Voltage Range | 3V |

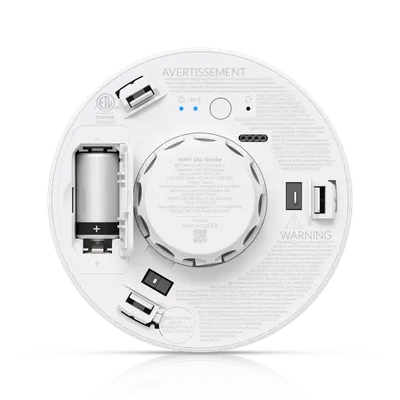

| Power Method | (1) Replaceable lithium battery CR123A (SuperLink connectivity) (2) Non-replaceable lithium batteries L91 (Smoke & CO alarm) |
| Battery Life | CR123A: Up to 10 years (SuperLink) L91: 10 years (Smoke & CO) |
| Weight | 311 g (11 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

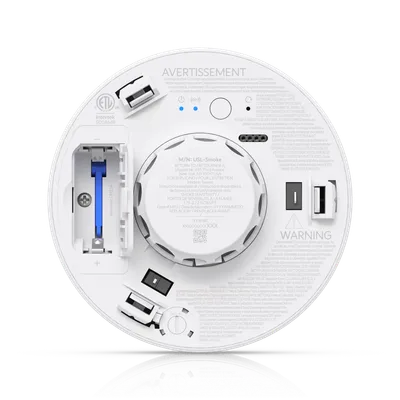

| Buttons | (1) Function button (1) Factory reset (1) Test/silence button (1) Tamper switch (1) Deactivation switch |
| LEDs | (1) Status: B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, CAN/ULC 531, CSA 6.19, EN 14604, EN 50291-1, UL 217, UL 2034 |
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
