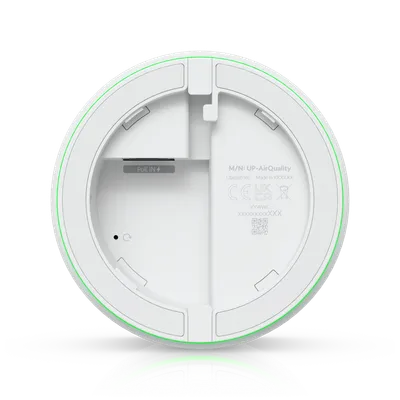

Plan your UniFi Vape Detection & Air Quality Sensor installation in Perth with Servicewest. We assess the site and supporting equipment before specifying UP-AirQuality.
The Vape Detection & Air Quality Sensor (UP-AirQuality) needs to be assessed against its supported application, radio or network connection and intended use. A US catalogue listing does not establish Australian approval or suitability. These points need confirmation before installation is proposed.
Power Method: PoE. Max. Power Consumption: 2.2W. Networking Interface: (1) 10/100 MbE RJ45 port. Mounting: Wall, ceiling and table. Dimensions: ⌀93 x 40.5 mm (⌀3.7 x 1.6"). These manufacturer figures inform the mounting, connection and site assessment; we check the final model and supporting equipment before installation.
Detection devices need a location that suits the condition being monitored. We review the manufacturer placement requirements, environmental limits, connection path and maintenance access. The exact model determines what can be detected and how alerts reach an authorised user.
Notification recipients, routine testing and battery or power maintenance need an owner. The agreed functions and limitations belong in the handover. A connected sensor must not be assumed to replace a required certified safety system or a monitored alarm service.
Manufacturer specifications for UP-AirQuality. Check the selected model, regional version and current software requirements during assessment.
View manufacturer source| Dimensions | ⌀93 x 40.5 mm (⌀3.7 x 1.6") |
|---|---|

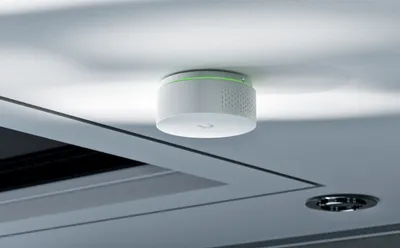

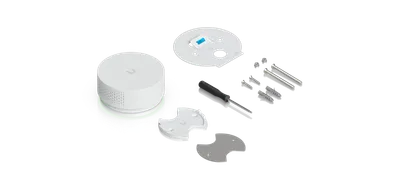

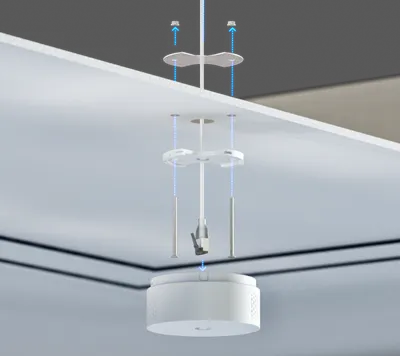

| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |

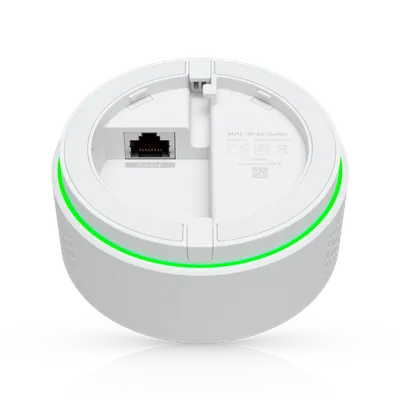

| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|

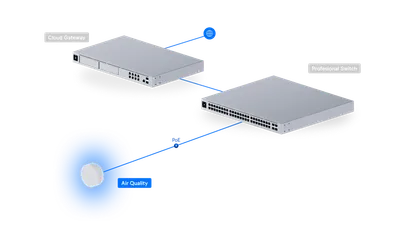

| Connectivity | Ethernet |
| Air Quality | CO2, PM1, PM2.5, PM4, PM10, VOC, NOx, AQI, Vape |
| Sampling Rate | 1 Hz |
| Temperature Sensor | 0–40° C (32–104° F) |
| Humidity Sensor | 0–90% RH |
| Air Quality | 0–500 |
| CO2 Sensor | 0–40,000 ppm |
| PM1/PM2.5/PM4/PM10 | 0–1000 μg/m³ |
| VOC Index | 1–500 |
| Vape Index | 0–100 |
| NOx Index | 1–500 |
| PM1/PM2.5 | 0–100: ±(5 µg/m³ + 5% m.v.) 100–1000: ±10% m.v. |
| PM4/PM10 | 0–100: ±25 µg/m³ 100–1000: ±25% m.v. |
| VOC | ±5% |
| CO2 | 400–2000: ±(50 ppm + 3% of reading) 2000–5000: ±(50 ppm + 5% of reading) |
| Temperature | ±1° C (1.8° F) |
| Relative Humidity | ±8% RH |
| Max. Power Consumption | 2.2W |
|---|---|
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35° C (50 to 95° F)Short-term exposure outside this range is supported. Accuracy and long-term reliability are not guaranteed. |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Web Application | UniFi Protect: Version 7.1 or later. |
|---|---|
| Mobile App | UniFi Protect iOS™: Version 3.6.0 or later. Android™: Version 3.5.0 or later. |
Related catalogue items to discuss. Compatibility is checked against the exact model and site design.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Installation, specifications and supporting equipment.
Tell us your suburb, your property and what you want to connect. We’ll work through the equipment and the installation with you.
